| Manufacturer Part Number: | TPS54320RHLR |
|---|---|
| Manufacturer: | Texas Instruments |
| Product Category: | PMIC - Voltage Regulators - DC DC Switching Regulators |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |

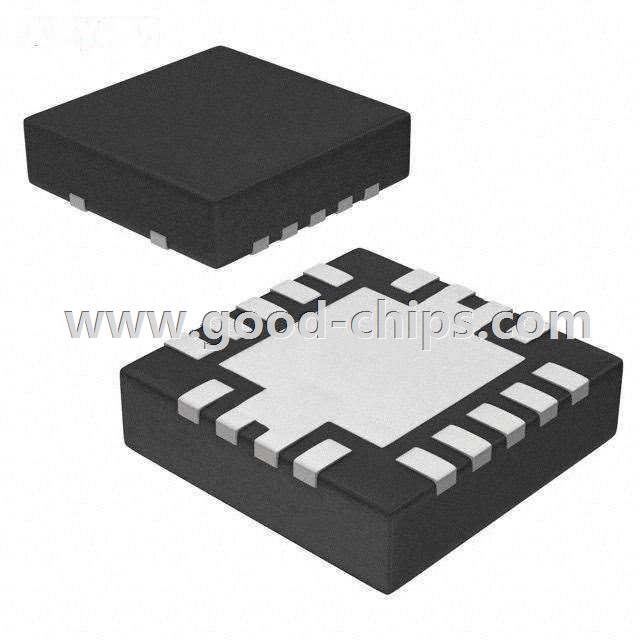

| Description: | Buck Switching Regulator IC Positive Adjustable 0.8V 1 Output 3A 14-VFQFN Exposed Pad |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 2 (1 Year) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | TPS54320RHLR Datasheet |
| Internal Part Number | 898-TPS54320RHLR | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Design Resources | TPS54320 Design with WEBENCH® Power Designer | |
| Featured Product | TPS54320 SWIFT™ Converter Create your power design now with TI’s WEBENCH® Designer Analog Solutions for Xilinx FPGAs and CPLDs – Texas Instruments | DigiKey | |
| PCN Assembly/Origin | Assembly Site 01/Mar/2016 | |
| Manufacturer Product Page | TPS54320RHLR Specifications | |
| EDA / CAD Models | Download from Accelerated Designs | |
| Online Catalog | Buck (Step-Down) IC | |
| Category | Integrated Circuits (ICs) | |
| Family | PMIC - Voltage Regulators - DC DC Switching Regulators | |
| Manufacturer | Texas Instruments | |
| Series | SWIFT™ | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| Function | Step-Down | |
| Output Configuration | Positive | |
| Topology | Buck | |
| Output Type | Adjustable | |
| Number of Outputs | 1 | |
| Voltage - Input (Min) | 4.5V | |
| Voltage - Input (Max) | 17V | |
| Voltage - Output (Min/Fixed) | 0.8V | |
| Voltage - Output (Max) | 15V | |
| Current - Output | 3A | |
| Frequency - Switching | 200kHz ~ 1.2MHz | |
| Synchronous Rectifier | Yes | |
| Operating Temperature | -40°C ~ 150°C (TJ) | |
| Mounting Type | Surface Mount | |
| Package / Case | 14-VFQFN Exposed Pad | |
| Supplier Device Package | 14-QFN (3.5x3.5) | |
| Standard Package | 3,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | TPS54320RHLR | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
TPS54320RHLR is in stock for immediate shipping now. We are the distributor of Texas Instruments all series components. The condition of TPS54320RHLR is new and unused, you can buy TPS54320RHLR Texas Instruments with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for TPS54320RHLR.
