| Manufacturer Part Number: | TPS54226PWPR |
|---|---|
| Manufacturer: | Texas Instruments |
| Product Category: | PMIC - Voltage Regulators - DC DC Switching Regulators |
| Available Quantity: | 12110 Pieces |
| Unit Price: | Quote by Email |

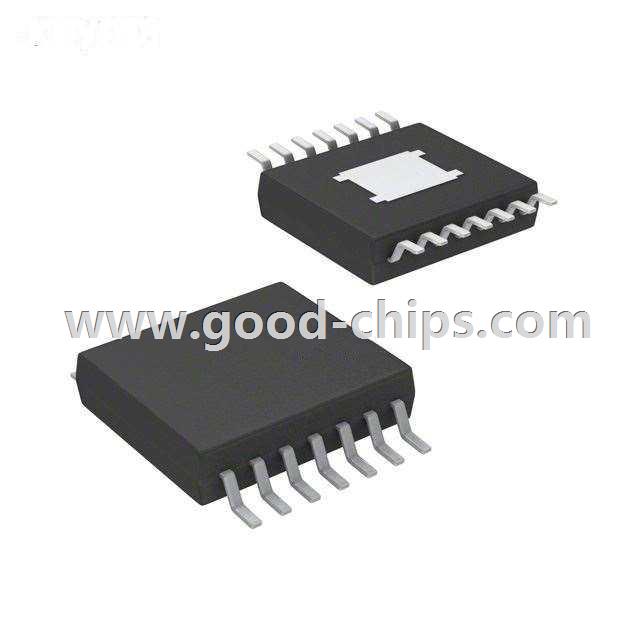

| Description: | Buck Switching Regulator IC Positive Adjustable 0.76V 1 Output 2A 14-TSSOP (0.173", 4.40mm Width) Exposed Pad |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 2 (1 Year) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | TPS54226PWPR Datasheet |
| Internal Part Number | 898-TPS54226PWPR | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Product Training Modules | Understanding SWIFT Step Down Dc/Dc Converters | |
| Design Resources | TPS54226 Design with WEBENCH® Power Designer | |
| Featured Product | Create your power design now with TI’s WEBENCH® Designer Analog Solutions for Xilinx FPGAs and CPLDs – Texas Instruments | DigiKey | |
| Manufacturer Product Page | TPS54226PWPR Specifications | |
| EDA / CAD Models | Download from Accelerated Designs | |
| Online Catalog | Buck (Step-Down) IC | |
| Category | Integrated Circuits (ICs) | |
| Family | PMIC - Voltage Regulators - DC DC Switching Regulators | |
| Manufacturer | Texas Instruments | |
| Series | SWIFT™, D-CAP2™, Eco-Mode™ | |
| Packaging | Digi-Reel® | |
| Part Status | Active | |
| Function | Step-Down | |
| Output Configuration | Positive | |
| Topology | Buck | |
| Output Type | Adjustable | |
| Number of Outputs | 1 | |
| Voltage - Input (Min) | 2V | |
| Voltage - Input (Max) | 18V | |
| Voltage - Output (Min/Fixed) | 0.76V | |
| Voltage - Output (Max) | 5.5V | |
| Current - Output | 2A | |
| Frequency - Switching | 700kHz | |
| Synchronous Rectifier | Yes | |
| Operating Temperature | -40°C ~ 85°C (TA) | |
| Mounting Type | Surface Mount | |
| Package / Case | 14-TSSOP (0.173", 4.40mm Width) Exposed Pad | |
| Supplier Device Package | 14-HTSSOP | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | TPS54226PWPR | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
TPS54226PWPR is in stock for immediate shipping now. We are the distributor of Texas Instruments all series components. The condition of TPS54226PWPR is new and unused, you can buy TPS54226PWPR Texas Instruments with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for TPS54226PWPR.
