| Manufacturer Part Number: | TPS40222DRPT |
|---|---|
| Manufacturer: | Texas Instruments |
| Product Category: | PMIC - Voltage Regulators - DC DC Switching Regulators |
| Available Quantity: | 10010 Pieces |
| Unit Price: | Quote by Email |
| Description: | Buck Switching Regulator IC Positive Adjustable 0.8V 1 Output 1.6A 6-VDFN Exposed Pad |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 2 (1 Year) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | TPS40222DRPT Datasheet |
| Internal Part Number | 898-TPS40222DRPT | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| EDA / CAD Models | Download from Accelerated Designs | |
| Online Catalog | Buck (Step-Down) IC | |
| Category | Integrated Circuits (ICs) | |
| Family | PMIC - Voltage Regulators - DC DC Switching Regulators | |
| Manufacturer | Texas Instruments | |
| Series | - | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| Function | Step-Down | |
| Output Configuration | Positive | |
| Topology | Buck | |
| Output Type | Adjustable | |
| Number of Outputs | 1 | |
| Voltage - Input (Min) | 4.5V | |
| Voltage - Input (Max) | 8V | |
| Voltage - Output (Min/Fixed) | 0.8V | |
| Voltage - Output (Max) | 7.2V | |
| Current - Output | 1.6A | |
| Frequency - Switching | 1.25MHz | |
| Synchronous Rectifier | No | |
| Operating Temperature | -40°C ~ 125°C (TA) | |
| Mounting Type | Surface Mount | |

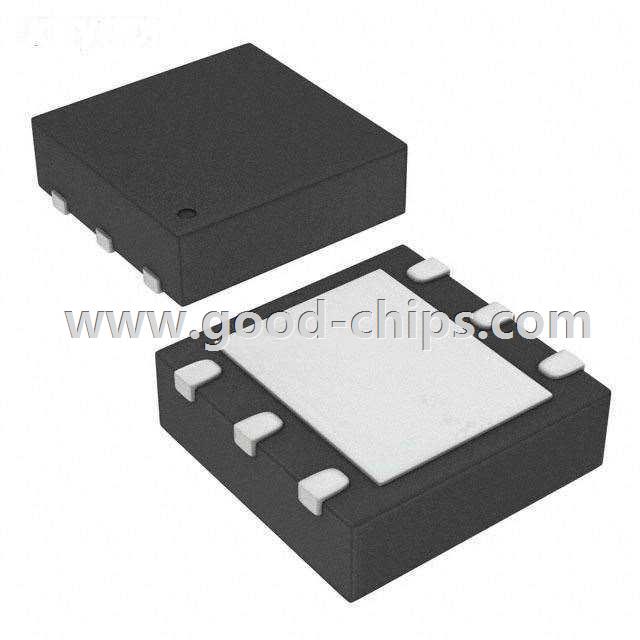

| Package / Case | 6-VDFN Exposed Pad | |
| Supplier Device Package | 6-VSON Exposed Pad (3x3) | |
| Standard Package | 250 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | TPS40222DRPT | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
TPS40222DRPT is in stock for immediate shipping now. We are the distributor of Texas Instruments all series components. The condition of TPS40222DRPT is new and unused, you can buy TPS40222DRPT Texas Instruments with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for TPS40222DRPT.
