Manufacturer Part Number: | TPS2343DDPG3 |
---|---|
Manufacturer: | Texas Instruments |
Product Category: | PMIC - Hot Swap Controllers |
Available Quantity: | 9010 Pieces |
Unit Price: | Quote by Email |
Description: | Hot Plug Controller 12 Channel PCI, PCI-X 80-HTSSOP |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 2 (1 Year) |
Production Status (Lifecycle): | Obsolete / Discontinued |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | TPS2343DDPG3 Datasheet |
Internal Part Number | 898-TPS2343DDPG3 | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
PCN Obsolescence/ EOL | Multiples Devices 23/Sep/2013 | |
Category | Integrated Circuits (ICs) | |
Family | PMIC - Hot Swap Controllers | |
Manufacturer | Texas Instruments | |
Series | - | |
Packaging | Tube | |
Part Status | Obsolete | |
Type | Hot Plug Controller | |
Number of Channels | 12 | |
Internal Switch(s) | Both | |
Applications | PCI, PCI-X | |
Features | Latched Fault, Thermal Limit | |
Programmable Features | Current Limit, Slew Rate | |
Voltage - Supply | 1.5V, 3.3V, 5V, ±12V | |
Current - Output (Max) | 100mA, 375mA, 1.1A | |
Operating Temperature | -40°C ~ 85°C | |
Current - Supply | - | |
Mounting Type | Surface Mount | |

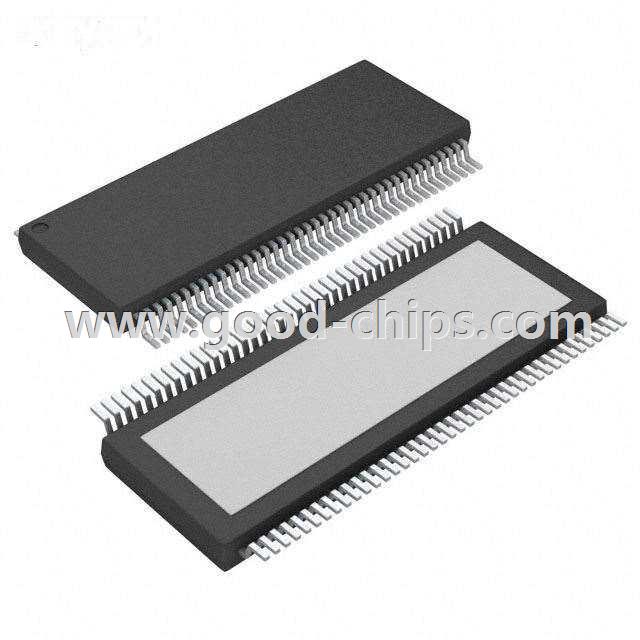

Package / Case | 80-TFSOP (0.240", 6.10mm Width) Exposed Pad | |
Supplier Device Package | 80-HTSSOP | |
Feature Pins | - | |
Standard Package | 28 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | TPS2343DDPG3 | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
TPS2343DDPG3 is in stock for immediate shipping now. We are the distributor of Texas Instruments all series components. The condition of TPS2343DDPG3 is new and unused, you can buy TPS2343DDPG3 Texas Instruments with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for TPS2343DDPG3.
