| Manufacturer Part Number: | TPS22966DPUR |
|---|---|
| Manufacturer: | Texas Instruments |
| Product Category: | PMIC - Power Distribution Switches, Load Drivers |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | IC LOAD SWITCH 6A DUAL 14WSON |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 2 (1 Year) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | TPS22966DPUR Datasheet |
| Internal Part Number | 898-TPS22966DPUR | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| PCN Assembly/Origin | Assembly/Test Site Add 6/Apr/2016 | |
| EDA / CAD Models | Download from Accelerated Designs | |
| Online Catalog | General Purpose | |
| Category | Integrated Circuits (ICs) | |
| Family | PMIC - Power Distribution Switches, Load Drivers | |
| Manufacturer | Texas Instruments | |
| Series | - | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| Switch Type | General Purpose | |
| Number of Outputs | 2 | |
| Ratio - Input:Output | 1:1 | |
| Output Configuration | High Side or Low Side | |
| Output Type | N-Channel | |
| Interface | On/Off | |
| Voltage - Load | 2.5 V ~ 5.5 V | |
| Voltage - Supply (Vcc/Vdd) | 0.8 V ~ 5.5 V | |
| Current - Output (Max) | 6A | |
| Rds On (Typ) | 18 mOhm | |
| Input Type | Non-Inverting | |
| Features | Load Discharge | |
| Fault Protection | - | |
| Operating Temperature | -40°C ~ 125°C (TJ) | |

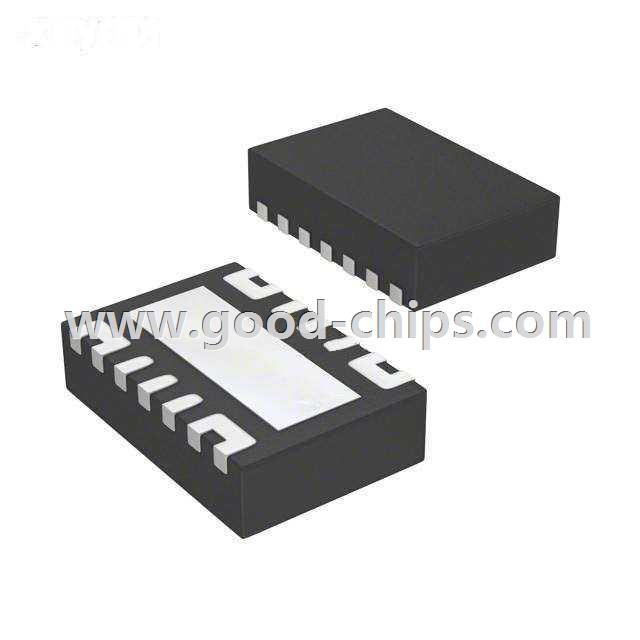

| Package / Case | 14-WFDFN Exposed Pad | |
| Supplier Device Package | 14-WSON (3x2) | |
| Standard Package | 3,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | TPS22966DPUR | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
TPS22966DPUR is in stock for immediate shipping now. We are the distributor of Texas Instruments all series components. The condition of TPS22966DPUR is new and unused, you can buy TPS22966DPUR Texas Instruments with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for TPS22966DPUR.
