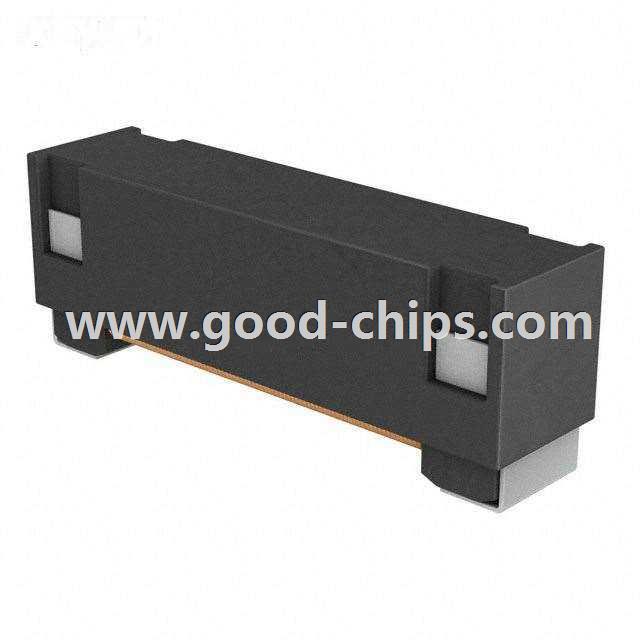

| Manufacturer Part Number: | TPL802727-193H |
|---|---|
| Manufacturer: | TDK Corporation |
| Product Category: | Fixed Inductors |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | 18.52mH Unshielded Inductor 240 Ohm Max Nonstandard |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | TPL802727-193H Datasheet |
| Internal Part Number | 898-TPL802727-193H | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Online Catalog | TPL Series | |
| Category | Inductors, Coils, Chokes | |
| Family | Fixed Inductors | |
| Manufacturer | TDK Corporation | |
| Series | TPL | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| Type | - | |
| Material - Core | - | |
| Inductance | 18.52mH | |
| Tolerance | ±3% | |
| Current Rating | - | |
| Current - Saturation | - | |
| Shielding | Unshielded | |
| DC Resistance (DCR) | 240 Ohm Max | |
| Q @ Freq | 40 @ 125kHz | |
| Frequency - Self Resonant | - | |
| Ratings | AEC-Q200 | |
| Operating Temperature | -40°C ~ 125°C | |
| Frequency - Test | 125kHz | |
| Mounting Type | Surface Mount | |
| Package / Case | Nonstandard | |
| Size / Dimension | 0.309" L x 0.106" W (7.85mm x 2.70mm) | |
| Height - Seated (Max) | 0.114" (2.90mm) | |
| Standard Package | 2,500 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | TPL802727-193H | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
TPL802727-193H is in stock for immediate shipping now. We are the distributor of TDK Corporation all series components. The condition of TPL802727-193H is new and unused, you can buy TPL802727-193H TDK Corporation with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for TPL802727-193H.
