| Manufacturer Part Number: | TPL0102-100RUCR |
|---|---|
| Manufacturer: | Texas Instruments |
| Product Category: | Data Acquisition - Digital Potentiometers |
| Available Quantity: | 12010 Pieces |
| Unit Price: | Quote by Email |
| Description: | Digital Potentiometer 100k Ohm 2 Circuit 256 Taps I²C Interface 14-QFN (2x2) |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | TPL0102-100RUCR Datasheet |
| Internal Part Number | 898-TPL0102-100RUCR | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| PCN Assembly/Origin | Assembly/Test Site Addition 16/Jul/2014 | |
| Manufacturer Product Page | TPL0102-100RUCR Specifications | |
| EDA / CAD Models | Download from Accelerated Designs | |
| Online Catalog | 256 Taps Dual Channel | |
| Category | Integrated Circuits (ICs) | |
| Family | Data Acquisition - Digital Potentiometers | |
| Manufacturer | Texas Instruments | |
| Series | - | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| Taper | Linear | |
| Configuration | Potentiometer | |
| Number of Circuits | 2 | |
| Number of Taps | 256 | |
| Resistance (Ohms) | 100k | |
| Interface | I²C | |
| Memory Type | Non-Volatile | |
| Voltage - Supply | 2.7 V ~ 5.5 V, ±2.25 V ~ 2.75 V | |
| Features | Selectable Address | |
| Tolerance | ±20% | |
| Temperature Coefficient (Typ) | 92 ppm/°C | |
| Resistance - Wiper (Ohms) (Typ) | 25 | |
| Operating Temperature | -40°C ~ 85°C | |

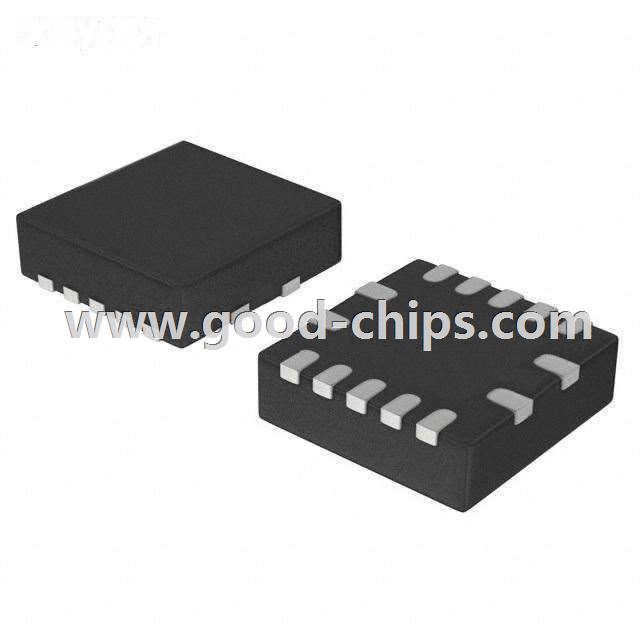

| Package / Case | 14-XFQFN | |
| Supplier Device Package | 14-QFN (2x2) | |
| Standard Package | 3,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | TPL0102-100RUCR | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
TPL0102-100RUCR is in stock for immediate shipping now. We are the distributor of Texas Instruments all series components. The condition of TPL0102-100RUCR is new and unused, you can buy TPL0102-100RUCR Texas Instruments with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for TPL0102-100RUCR.
