| Manufacturer Part Number: | TPH5200FNH,L1Q |
|---|---|
| Manufacturer: | Toshiba Semiconductor and Storage |
| Product Category: | Transistors - FETs, MOSFETs - Single |
| Available Quantity: | 14010 Pieces |
| Unit Price: | Quote by Email |
| Description: | MOSFET N-CH 250V 26A SOP8 |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | TPH5200FNH,L1Q Datasheet |
| Internal Part Number | 898-TPH5200FNH,L1Q | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Online Catalog | N-Channel Standard FETs | |
| Category | Discrete Semiconductor Products | |
| Family | Transistors - FETs, MOSFETs - Single | |
| Manufacturer | Toshiba Semiconductor and Storage | |
| Series | - | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| FET Type | MOSFET N-Channel, Metal Oxide | |
| FET Feature | Standard | |
| Drain to Source Voltage (Vdss) | 250V | |
| Current - Continuous Drain (Id) @ 25°C | 26A (Tc) | |
| Rds On (Max) @ Id, Vgs | 52 mOhm @ 13A, 10V | |
| Vgs(th) (Max) @ Id | 4V @ 1mA | |
| Gate Charge (Qg) @ Vgs | 22nC @ 10V | |
| Input Capacitance (Ciss) @ Vds | 2200pF @ 100V | |
| Power - Max | 78W | |
| Operating Temperature | 150°C (TJ) | |
| Mounting Type | Surface Mount | |

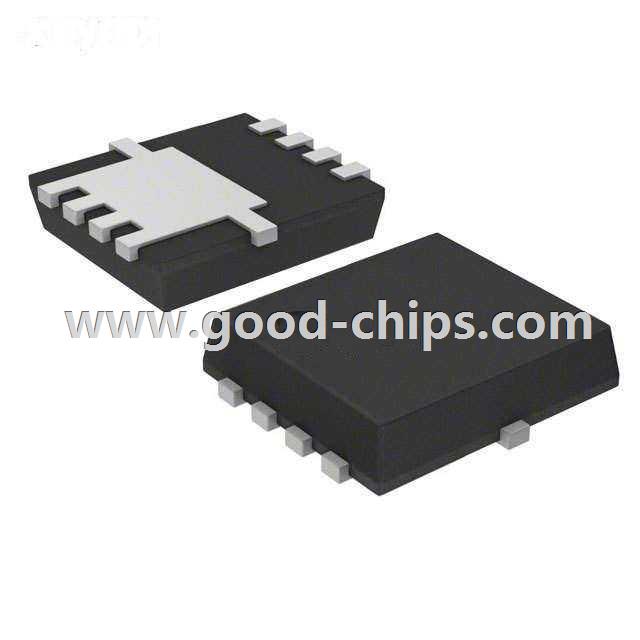

| Package / Case | 8-PowerVDFN | |
| Supplier Device Package | 8-SOP Advance | |
| Standard Package | 5,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | TPH5200FNH,L1Q | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
TPH5200FNH,L1Q is in stock for immediate shipping now. We are the distributor of Toshiba Semiconductor and Storage all series components. The condition of TPH5200FNH,L1Q is new and unused, you can buy TPH5200FNH,L1Q Toshiba Semiconductor and Storage with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for TPH5200FNH,L1Q.
