| Manufacturer Part Number: | TPD6F003DQDR |
|---|---|
| Manufacturer: | Texas Instruments |
| Product Category: | EMI/RFI Filters (LC, RC Networks) |
| Available Quantity: | 12010 Pieces |
| Unit Price: | Quote by Email |
| Description: | RC (Pi) EMI Filter 2nd Order Low Pass 6 Channel R = 100 Ohms, C = 8.5pF 12-WFDFN Exposed Pad |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | TPD6F003DQDR Datasheet |
| Internal Part Number | 898-TPD6F003DQDR | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Product Training Modules | ESD Protection Basics | |
| Manufacturer Product Page | TPD6F003DQDR Specifications | |
| EDA / CAD Models | Download from Accelerated Designs | |
| Online Catalog | TPDxF003Series | |
| Category | Filters | |
| Family | EMI/RFI Filters (LC, RC Networks) | |
| Manufacturer | Texas Instruments | |
| Series | TPD | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| Type | Low Pass | |
| Filter Order | 2nd | |
| Technology | RC (Pi) | |
| Number of Channels | 6 | |
| Center / Cutoff Frequency | 200MHz (Cutoff) | |
| Attenuation Value | 25dB @ 1GHz | |
| Resistance - Channel (Ohms) | 100 | |
| Current | - | |
| Values | R = 100 Ohms, C = 8.5pF | |
| ESD Protection | Yes | |
| Operating Temperature | -40°C ~ 85°C | |
| Applications | Data Lines for Mobile Devices | |
| Voltage - Rated | - | |
| Mounting Type | Surface Mount | |

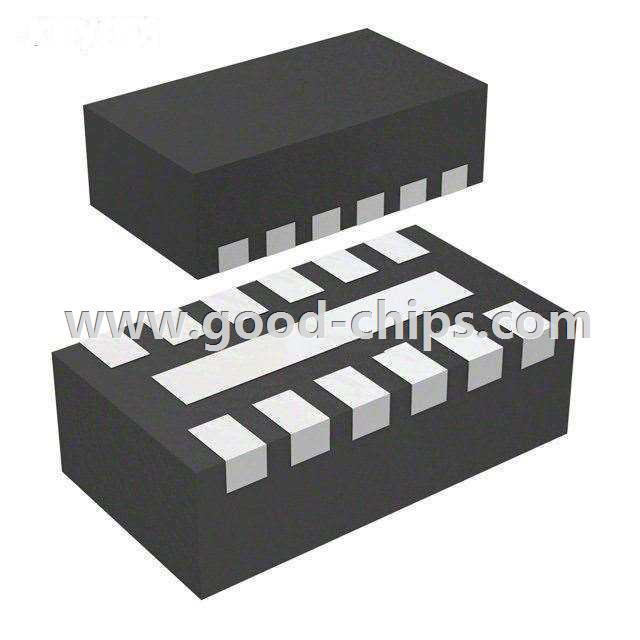

| Package / Case | 12-WFDFN Exposed Pad | |
| Size / Dimension | 0.098" L x 0.053" W (2.50mm x 1.35mm) | |
| Height | 0.031" (0.80mm) | |
| Standard Package | 3,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | TPD6F003DQDR | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
TPD6F003DQDR is in stock for immediate shipping now. We are the distributor of Texas Instruments all series components. The condition of TPD6F003DQDR is new and unused, you can buy TPD6F003DQDR Texas Instruments with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for TPD6F003DQDR.
