| Manufacturer Part Number: | TPD6E05U06RVZR |
|---|---|
| Manufacturer: | Texas Instruments |
| Product Category: | TVS - Diodes |
| Available Quantity: | 15010 Pieces |
| Unit Price: | Quote by Email |
| Description: | TVS DIODE 5.5VWM 14VC 14UQFN |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | TPD6E05U06RVZR Datasheet |
| Internal Part Number | 898-TPD6E05U06RVZR | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Product Training Modules | ESD Protection Basics | |
| PCN Assembly/Origin | Assembly/Test Site Addition 02/Sep/2015 | |
| Manufacturer Product Page | TPD6E05U06RVZR Specifications | |
| Online Catalog | TPD6E05U06RVZR Series | |
| Category | Circuit Protection | |
| Family | TVS - Diodes | |
| Manufacturer | Texas Instruments | |
| Series | - | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| Type | Steering (Rail to Rail) | |
| Unidirectional Channels | - | |
| Bidirectional Channels | 6 | |
| Voltage - Reverse Standoff (Typ) | 5.5V (Max) | |
| Voltage - Breakdown (Min) | 6V | |
| Voltage - Clamping (Max) @ Ipp | 14V | |
| Current - Peak Pulse (10/1000µs) | 2.5A (8/20µs) | |
| Power - Peak Pulse | 40W | |
| Power Line Protection | Yes | |
| Applications | HDMI | |
| Capacitance @ Frequency | - | |
| Operating Temperature | -40°C ~ 125°C (TA) | |
| Mounting Type | Surface Mount | |

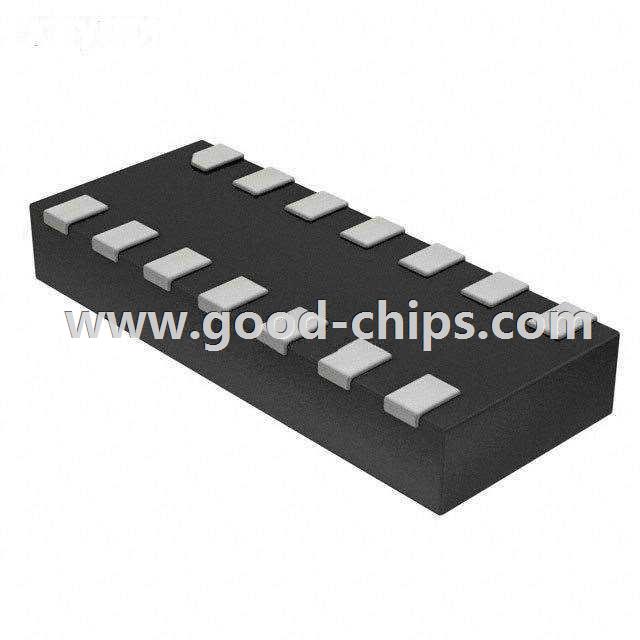

| Package / Case | 14-UFDFN | |
| Supplier Device Package | 14-USON (3.50x1.35) | |
| Standard Package | 3,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | TPD6E05U06RVZR | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
TPD6E05U06RVZR is in stock for immediate shipping now. We are the distributor of Texas Instruments all series components. The condition of TPD6E05U06RVZR is new and unused, you can buy TPD6E05U06RVZR Texas Instruments with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for TPD6E05U06RVZR.
