| Manufacturer Part Number: | TPD6E001RSFRG4 |
|---|---|
| Manufacturer: | Texas Instruments |
| Product Category: | TVS - Diodes |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | TVS DIODE 12UQFN |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | TPD6E001RSFRG4 Datasheet |
| Internal Part Number | 898-TPD6E001RSFRG4 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| PCN Design/Specification | Copper Wire Base Metal 19/Jun/2014 Copper Wire Revision B 16/Dec/2014 | |
| Manufacturer Product Page | TPD6E001RSFRG4 Specifications | |
| EDA / CAD Models | Download from Accelerated Designs | |
| Category | Circuit Protection | |
| Family | TVS - Diodes | |
| Manufacturer | Texas Instruments | |
| Series | - | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| Type | Steering (Rail to Rail) | |
| Unidirectional Channels | - | |
| Bidirectional Channels | 6 | |
| Voltage - Reverse Standoff (Typ) | 5V (Max) | |
| Voltage - Breakdown (Min) | 11V | |
| Voltage - Clamping (Max) @ Ipp | - | |
| Current - Peak Pulse (10/1000µs) | - | |
| Power - Peak Pulse | - | |
| Power Line Protection | Yes | |
| Applications | General Purpose | |
| Capacitance @ Frequency | - | |
| Operating Temperature | -40°C ~ 85°C (TA) | |
| Mounting Type | Surface Mount | |

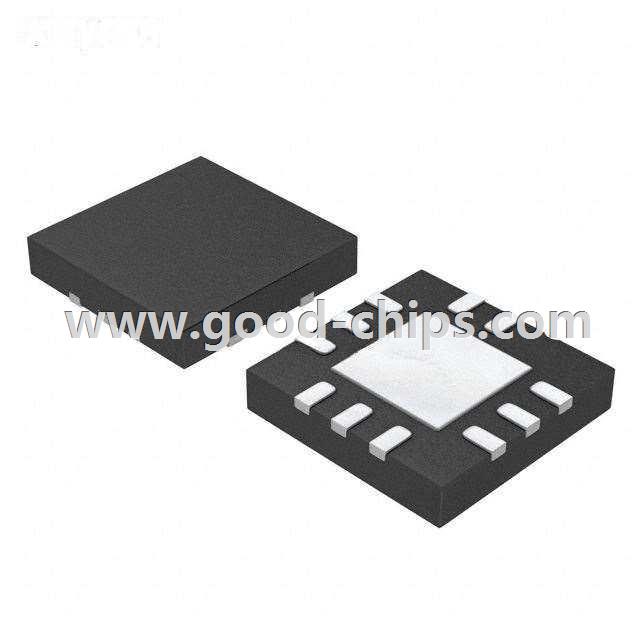

| Package / Case | 12-WQFN Exposed Pad | |
| Supplier Device Package | 12-WQFN (4x4) | |
| Standard Package | 2,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | TPD6E001RSFRG4 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
TPD6E001RSFRG4 is in stock for immediate shipping now. We are the distributor of Texas Instruments all series components. The condition of TPD6E001RSFRG4 is new and unused, you can buy TPD6E001RSFRG4 Texas Instruments with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for TPD6E001RSFRG4.
