| Manufacturer Part Number: | TPD5E003DPFR |
|---|---|
| Manufacturer: | Texas Instruments |
| Product Category: | TVS - Diodes |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | TVS DIODE 5VWM 19.5VC 6X2SON |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | TPD5E003DPFR Datasheet |
| Internal Part Number | 898-TPD5E003DPFR | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| PCN Design/Specification | Pin 1 Marking Update 04/May/2015 | |
| Manufacturer Product Page | TPD5E003DPFR Specifications | |
| Online Catalog | TPD5E003 Series | |
| Category | Circuit Protection | |
| Family | TVS - Diodes | |
| Manufacturer | Texas Instruments | |
| Series | - | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| Type | Zener | |
| Unidirectional Channels | 5 | |
| Bidirectional Channels | 4 | |
| Voltage - Reverse Standoff (Typ) | 5V (Max) | |
| Voltage - Breakdown (Min) | 6V | |
| Voltage - Clamping (Max) @ Ipp | 19.5V | |
| Current - Peak Pulse (10/1000µs) | 10A (8/20µs) | |
| Power - Peak Pulse | 40W | |
| Power Line Protection | No | |
| Applications | General Purpose | |
| Capacitance @ Frequency | 10pF @ 1MHz | |
| Operating Temperature | -40°C ~ 125°C (TA) | |
| Mounting Type | Surface Mount | |

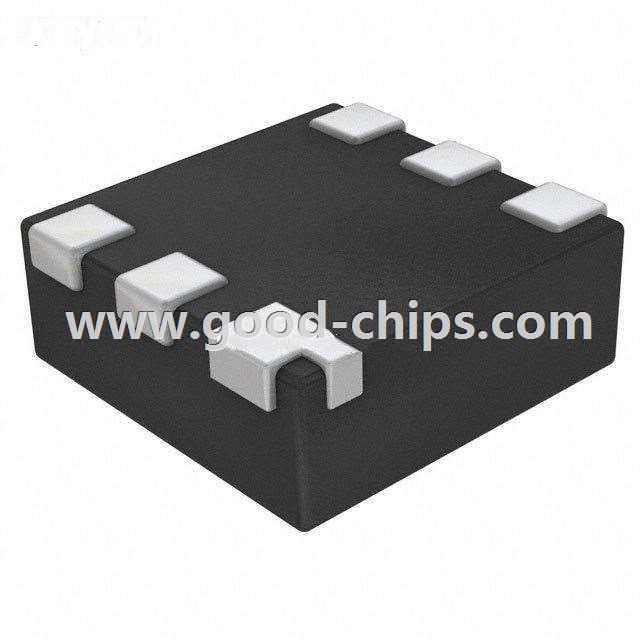

| Package / Case | 6-XFDFN | |
| Supplier Device Package | 6-X2SON (1x1) | |
| Standard Package | 5,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | TPD5E003DPFR | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
TPD5E003DPFR is in stock for immediate shipping now. We are the distributor of Texas Instruments all series components. The condition of TPD5E003DPFR is new and unused, you can buy TPD5E003DPFR Texas Instruments with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for TPD5E003DPFR.
