| Manufacturer Part Number: | TPD2F702YFKR |
|---|---|
| Manufacturer: | Texas Instruments |
| Product Category: | EMI/RFI Filters (LC, RC Networks) |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | RC (Pi) EMI Filter 2nd Order Low Pass 2 Channel R = 15 Ohms, C = 30pF, 5000pF 5-UFBGA, DSBGA |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | Obsolete / Discontinued |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | TPD2F702YFKR Datasheet |
| Internal Part Number | 898-TPD2F702YFKR | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Featured Product | TPD2F702 EMI Filter | |
| PCN Obsolescence/ EOL | TPD2F702YFKR 07/Aug/2013 | |
| EDA / CAD Models | Download from Accelerated Designs | |
| Category | Filters | |
| Family | EMI/RFI Filters (LC, RC Networks) | |
| Manufacturer | Texas Instruments | |
| Series | TPD | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Obsolete | |
| Type | Low Pass | |
| Filter Order | 2nd | |
| Technology | RC (Pi) | |
| Number of Channels | 2 | |
| Center / Cutoff Frequency | 1.2MHz (Cutoff) | |
| Attenuation Value | 50dB @ 100MHz | |
| Resistance - Channel (Ohms) | 15 | |
| Current | - | |
| Values | R = 15 Ohms, C = 30pF, 5000pF | |
| ESD Protection | Yes | |
| Operating Temperature | -40°C ~ 85°C | |
| Applications | Audio | |
| Voltage - Rated | - | |
| Mounting Type | Surface Mount | |

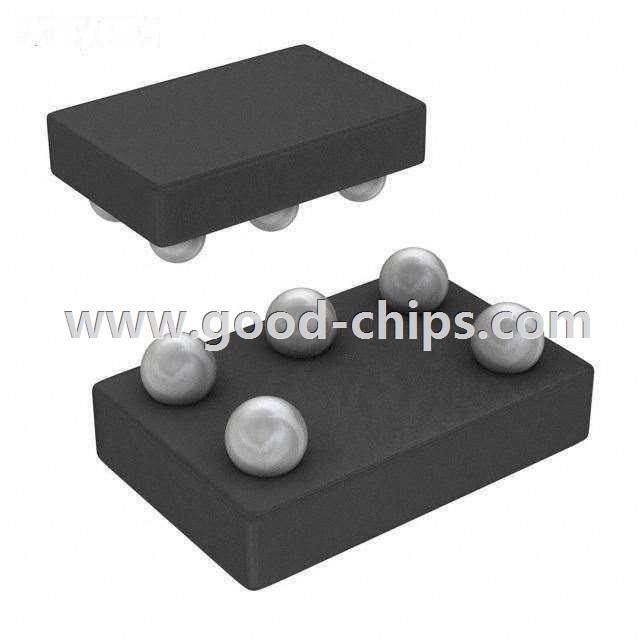

| Package / Case | 5-UFBGA, DSBGA | |
| Size / Dimension | 0.036" L x 0.052" W (0.91mm x 1.31mm) | |
| Height | 0.025" (0.63mm) | |
| Standard Package | 3,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | TPD2F702YFKR | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
TPD2F702YFKR is in stock for immediate shipping now. We are the distributor of Texas Instruments all series components. The condition of TPD2F702YFKR is new and unused, you can buy TPD2F702YFKR Texas Instruments with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for TPD2F702YFKR.
