Stocking distributor of Electronic Components
Email: [email protected]
| Manufacturer Part Number: | TPD2EUSB30ADRTR |
|---|---|
| Manufacturer: | Texas Instruments |
| Product Category: | TVS - Diodes |
| Available Quantity: | 45010 Pieces |
| Unit Price: | Quote by Email |
| Description: | TVS DIODE 3.6VWM 8VC SOT3 |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | TPD2EUSB30ADRTR Datasheet |
| Internal Part Number | 898-TPD2EUSB30ADRTR | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Product Training Modules | ESD/EMI Protection ESD Protection Basics | |
| Manufacturer Product Page | TPD2EUSB30ADRTR Specifications | |
| EDA / CAD Models | Download from Accelerated Designs | |
| Online Catalog | TPD2E Series | |
| Category | Circuit Protection | |
| Family | TVS - Diodes | |
| Manufacturer | Texas Instruments | |
| Series | - | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| Type | Steering (Rail to Rail) | |
| Unidirectional Channels | - | |
| Bidirectional Channels | 2 | |
| Voltage - Reverse Standoff (Typ) | 3.6V (Max) | |
| Voltage - Breakdown (Min) | 4.5V | |
| Voltage - Clamping (Max) @ Ipp | 8V | |
| Current - Peak Pulse (10/1000µs) | 1A (8/20µs) | |
| Power - Peak Pulse | 45W | |
| Power Line Protection | Yes | |
| Applications | General Purpose | |
| Capacitance @ Frequency | - | |
| Operating Temperature | -40°C ~ 85°C (TA) | |
| Mounting Type | Surface Mount | |

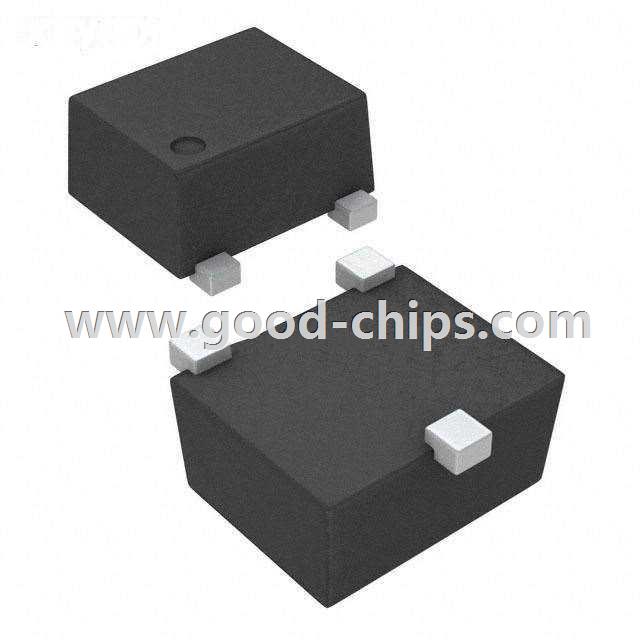

| Package / Case | SOT-3 | |
| Supplier Device Package | SOT-3 | |
| Standard Package | 3,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | TPD2EUSB30ADRTR | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
TPD2EUSB30ADRTR is in stock for immediate shipping now. We are the distributor of Texas Instruments all series components. The condition of TPD2EUSB30ADRTR is new and unused, you can buy TPD2EUSB30ADRTR Texas Instruments with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for TPD2EUSB30ADRTR.
