| Manufacturer Part Number: | TPD2E001DRSR |
|---|---|
| Manufacturer: | Texas Instruments |
| Product Category: | TVS - Diodes |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | TVS DIODE 5.5VWM 100VC 6SON |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 2 (1 Year) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | TPD2E001DRSR Datasheet |
| Internal Part Number | 898-TPD2E001DRSR | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Product Training Modules | ESD Protection Basics | |
| Manufacturer Product Page | TPD2E001DRSR Specifications | |
| EDA / CAD Models | Download from Accelerated Designs | |
| Online Catalog | TPD2E Series | |
| Category | Circuit Protection | |
| Family | TVS - Diodes | |
| Manufacturer | Texas Instruments | |
| Series | - | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| Type | Steering (Rail to Rail) | |
| Unidirectional Channels | - | |
| Bidirectional Channels | 2 | |
| Voltage - Reverse Standoff (Typ) | 5.5V (Max) | |
| Voltage - Breakdown (Min) | 11V | |
| Voltage - Clamping (Max) @ Ipp | - | |
| Current - Peak Pulse (10/1000µs) | - | |
| Power - Peak Pulse | - | |
| Power Line Protection | Yes | |
| Applications | Ethernet | |
| Capacitance @ Frequency | - | |
| Operating Temperature | -40°C ~ 85°C (TA) | |
| Mounting Type | Surface Mount | |

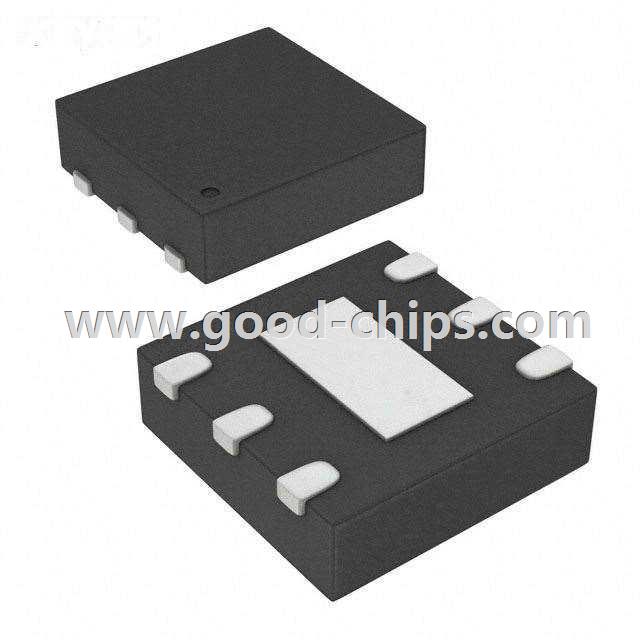

| Package / Case | 6-WDFN Exposed Pad | |
| Supplier Device Package | 6-SON-EP (3x3) | |
| Standard Package | 1,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | TPD2E001DRSR | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
TPD2E001DRSR is in stock for immediate shipping now. We are the distributor of Texas Instruments all series components. The condition of TPD2E001DRSR is new and unused, you can buy TPD2E001DRSR Texas Instruments with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for TPD2E001DRSR.
