| Manufacturer Part Number: | TPD1E10B09DPYT |
|---|---|
| Manufacturer: | Texas Instruments |
| Product Category: | TVS - Diodes |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | TVS DIODE 9VWM 20VC 2X2SON |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | TPD1E10B09DPYT Datasheet |
| Internal Part Number | 898-TPD1E10B09DPYT | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| PCN Assembly/Origin | Wafer Site/Dia 04/Apr/2013 Qualification Assembly/Test Site 16/Oct/2014 | |
| Manufacturer Product Page | TPD1E10B09DPYT Specifications | |
| Category | Circuit Protection | |
| Family | TVS - Diodes | |
| Manufacturer | Texas Instruments | |
| Series | - | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| Type | Zener | |
| Unidirectional Channels | - | |
| Bidirectional Channels | 1 | |
| Voltage - Reverse Standoff (Typ) | 9V (Max) | |
| Voltage - Breakdown (Min) | 9.5V | |
| Voltage - Clamping (Max) @ Ipp | 20V | |
| Current - Peak Pulse (10/1000µs) | 4.5A (8/20µs) | |
| Power - Peak Pulse | 90W | |
| Power Line Protection | No | |
| Applications | General Purpose | |
| Capacitance @ Frequency | - | |
| Operating Temperature | -40°C ~ 125°C (TA) | |
| Mounting Type | Surface Mount | |
| Package / Case | 2-XDFN | |

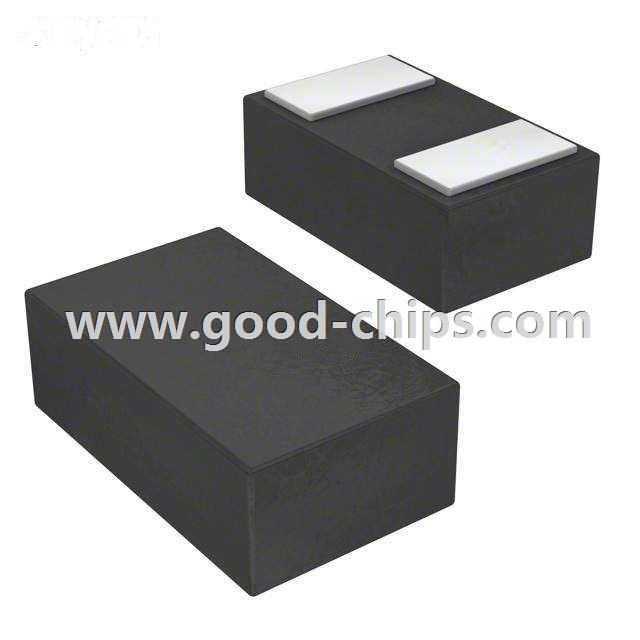

| Supplier Device Package | 2-X2SON (1x0.60) | |
| Standard Package | 250 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | TPD1E10B09DPYT | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
TPD1E10B09DPYT is in stock for immediate shipping now. We are the distributor of Texas Instruments all series components. The condition of TPD1E10B09DPYT is new and unused, you can buy TPD1E10B09DPYT Texas Instruments with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for TPD1E10B09DPYT.
