Manufacturer Part Number: | TPCP8103-H(TE85LFM |
---|---|
Manufacturer: | Toshiba Semiconductor and Storage |
Product Category: | Transistors - FETs, MOSFETs - Single |
Available Quantity: | 9010 Pieces |
Unit Price: | Quote by Email |
Description: | MOSFET P-CH 40V 4.8A PS-8 |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | TPCP8103-H(TE85LFM Datasheet |
Internal Part Number | 898-TPCP8103-H(TE85LFM | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Category | Discrete Semiconductor Products | |
Family | Transistors - FETs, MOSFETs - Single | |
Manufacturer | Toshiba Semiconductor and Storage | |
Series | - | |
Packaging | Tape & Reel (TR) | |
Part Status | Quote Required | |
FET Type | MOSFET P-Channel, Metal Oxide | |
FET Feature | Standard | |
Drain to Source Voltage (Vdss) | 40V | |
Current - Continuous Drain (Id) @ 25°C | 4.8A (Ta) | |
Rds On (Max) @ Id, Vgs | 40 mOhm @ 2.4A, 10V | |
Vgs(th) (Max) @ Id | 2V @ 1mA | |
Gate Charge (Qg) @ Vgs | 19nC @ 10V | |
Input Capacitance (Ciss) @ Vds | 800pF @ 10V | |
Power - Max | - | |
Operating Temperature | 150°C (TJ) | |
Mounting Type | Surface Mount | |

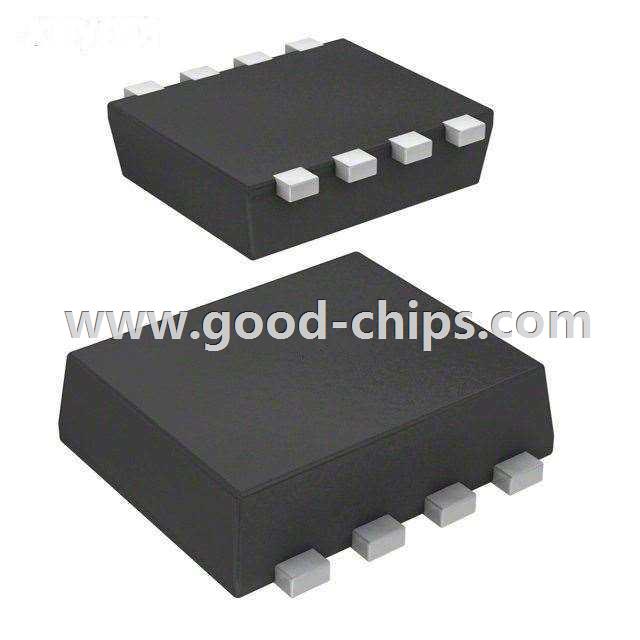

Package / Case | 8-SMD, Flat Lead | |
Supplier Device Package | PS-8 | |
Standard Package | 3,000 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | TPCP8103-H(TE85LFM | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
TPCP8103-H(TE85LFM is in stock for immediate shipping now. We are the distributor of Toshiba Semiconductor and Storage all series components. The condition of TPCP8103-H(TE85LFM is new and unused, you can buy TPCP8103-H(TE85LFM Toshiba Semiconductor and Storage with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for TPCP8103-H(TE85LFM.
