TPCP8004(TE85L,F)

TPCP8004(TE85L,F)
Manufacturer Part Number:TPCP8004(TE85L,F)
Manufacturer:
Product Category:Transistors - FETs, MOSFETs - Single
Available Quantity:9010 Pieces
Unit Price:Quote by Email
Description:MOSFET N-CH 30V 8.3A PS-8
Lead Free Status / RoHS Status:Lead free / RoHS Compliant
Moisture Sensitivity Level (MSL):1 (Unlimited)
Production Status (Lifecycle):Obsolete / Discontinued
Delivery Time:1-2 Days
Date Code (D/C):New
Datasheet Download: TPCP8004(TE85L,F) Datasheet
TPCP8004(TE85L,F)´s Parameters
Internal Part Number898-TPCP8004(TE85L,F)
Manufacturer Lead time6-8 weeks
ConditionNew & Unused, Original Sealed
CategoryDiscrete Semiconductor Products
FamilyTransistors - FETs, MOSFETs - Single
ManufacturerToshiba Semiconductor and Storage
Series-
PackagingTape & Reel (TR)
Part StatusObsolete
FET TypeMOSFET N-Channel, Metal Oxide
FET FeatureStandard
Drain to Source Voltage (Vdss)30V
Current - Continuous Drain (Id) @ 25°C8.3A (Ta)
Rds On (Max) @ Id, Vgs8.5 mOhm @ 4.2A, 10V
Vgs(th) (Max) @ Id2.5V @ 1mA
Gate Charge (Qg) @ Vgs26nC @ 10V
Input Capacitance (Ciss) @ Vds1270pF @ 10V
Power - Max-
Operating Temperature150°C (TJ)
Mounting TypeSurface Mount
Package / Case8-SMD, Flat Lead

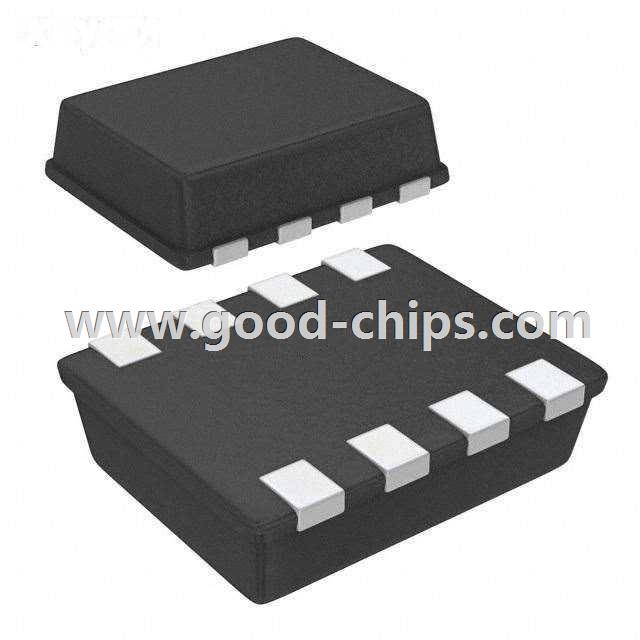

Supplier Device PackagePS-8
Standard Package 3,000
Weight0.001 KG
ApplicationEmail for details
Replacement PartTPCP8004(TE85L,F)
Country of OriginUSA / JAPAN / Philippines / Malaysia
MOQ1 Piece
Picture / Image / PhotoSend via email

TPCP8004(TE85L,F) is in stock for immediate shipping now. We are the distributor of Toshiba Semiconductor and Storage all series components. The condition of TPCP8004(TE85L,F) is new and unused, you can buy TPCP8004(TE85L,F) Toshiba Semiconductor and Storage with us at a very low price and quick delivery.

Please kindly send us an email if you have any demands for TPCP8004(TE85L,F).
