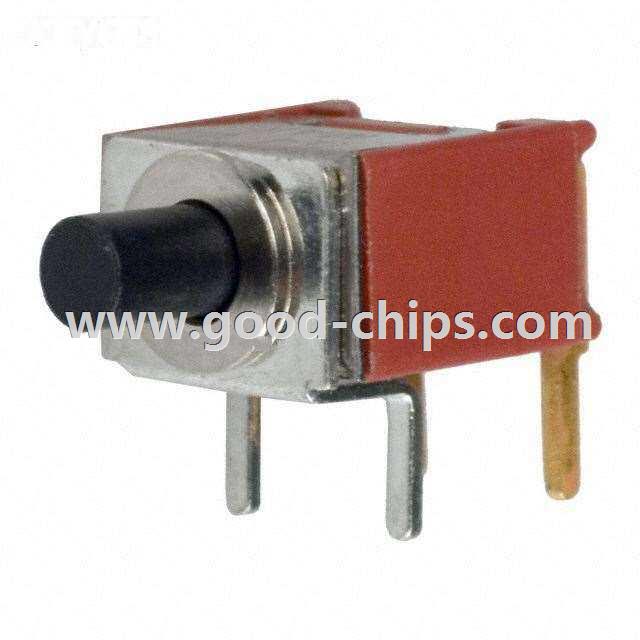

Manufacturer Part Number: | TP11MS9ABE |
---|---|
Manufacturer: | C&K Components |
Product Category: | Pushbutton Switches |
Available Quantity: | 9679 Pieces |
Unit Price: | Quote by Email |
Description: | Pushbutton Switch SPST-NO Standard Through Hole, Right Angle |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | TP11MS9ABE Datasheet |
Internal Part Number | 898-TP11MS9ABE | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Product Training Modules | Introduction to Electromechanical Switches | |
PCN Design/Specification | TP, T, TS Material 01/Jul/2009 | |
Online Catalog | TP Series | |
Category | Switches | |
Family | Pushbutton Switches | |
Manufacturer | C&K Components | |
Series | TP | |
Packaging | Bulk | |
Part Status | Active | |
Type | Standard | |
Circuit | SPST-NO | |
Switch Function | Off-Mom | |
Current Rating | 0.4VA (AC/DC) | |
Voltage Rating - AC | 20V | |
Voltage Rating - DC | 20V | |
Actuator Type | Round, Plunger | |
Color - Actuator/Cap | Black | |
Illumination Type, Color | - | |
Illumination Voltage (Nominal) | - | |
Mounting Type | Through Hole, Right Angle | |
Termination Style | PC Pin | |
Ingress Protection | - | |
Features | Epoxy Sealed Terminals | |
Panel Cutout Dimensions | - | |
Operating Temperature | -30°C ~ 85°C | |
Mechanical Life | - | |
Electrical Life | 60,000 Cycles | |
Standard Package | 1 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | TP11MS9ABE | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
TP11MS9ABE is in stock for immediate shipping now. We are the distributor of C&K Components all series components. The condition of TP11MS9ABE is new and unused, you can buy TP11MS9ABE C&K Components with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for TP11MS9ABE.
