| Manufacturer Part Number: | TNY376DN-TL |
|---|---|
| Manufacturer: | Power Integrations |
| Product Category: | PMIC - AC DC Converters, Offline Switchers |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | Converter Offline Flyback Topology 132kHz ~ 264kHz SO-8C |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 4 (72 Hours) |
| Production Status (Lifecycle): | Obsolete / Discontinued |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | TNY376DN-TL Datasheet |
| Internal Part Number | 898-TNY376DN-TL | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| PCN Obsolescence/ EOL | Multiple Devices 26/Sep/2011 | |
| Category | Integrated Circuits (ICs) | |
| Family | PMIC - AC DC Converters, Offline Switchers | |
| Manufacturer | Power Integrations | |
| Series | TinySwitch®-PK | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Obsolete | |
| Output Isolation | Isolated | |
| Internal Switch(s) | Yes | |
| Voltage - Breakdown | 700V | |
| Topology | Flyback | |
| Voltage - Start Up | - | |
| Voltage - Supply (Vcc/Vdd) | - | |
| Duty Cycle | 65% | |
| Frequency - Switching | 132kHz ~ 264kHz | |
| Power (Watts) | 19W | |
| Fault Protection | Current Limiting, Over Load, Over Temperature, Over Voltage | |
| Control Features | EN | |
| Operating Temperature | -40°C ~ 150°C (TJ) | |

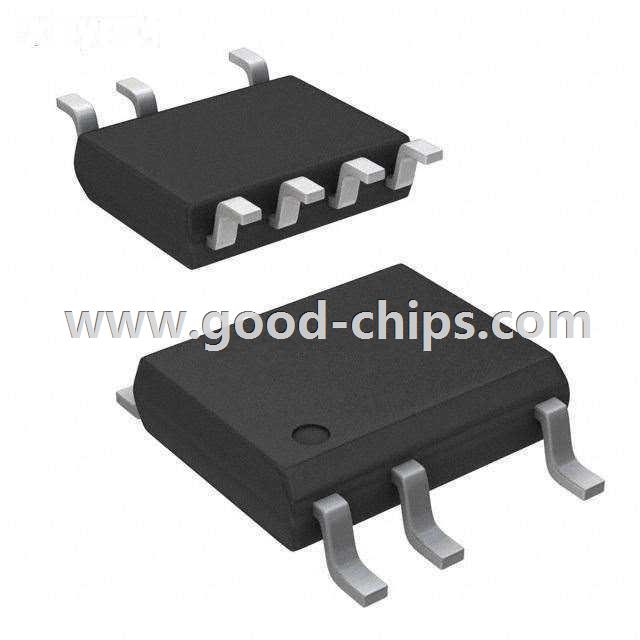

| Package / Case | 8-SOIC (0.154", 3.90mm Width) 7 leads | |
| Supplier Device Package | SO-8C | |
| Mounting Type | Surface Mount | |
| Standard Package | 2,500 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | TNY376DN-TL | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
TNY376DN-TL is in stock for immediate shipping now. We are the distributor of Power Integrations all series components. The condition of TNY376DN-TL is new and unused, you can buy TNY376DN-TL Power Integrations with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for TNY376DN-TL.
