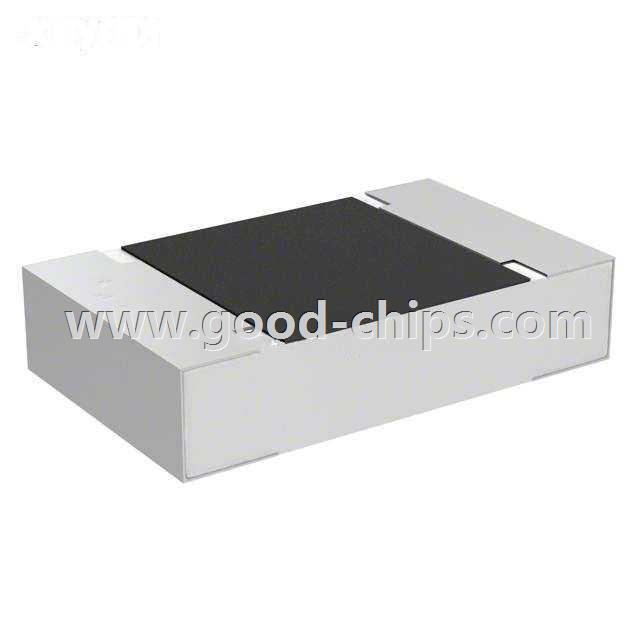

| Manufacturer Part Number: | TNPU08055K76AZEN00 |
|---|---|
| Manufacturer: | Vishay BC Components |
| Product Category: | Chip Resistor - Surface Mount |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | RES SMD 5.76KOHM 0.05% 1/8W 0805 |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | TNPU08055K76AZEN00 Datasheet |
| Internal Part Number | 898-TNPU08055K76AZEN00 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Featured Product | TNPU High-Precision Thin-Film Resistor | |
| Category | Resistors | |
| Family | Chip Resistor - Surface Mount | |
| Manufacturer | Vishay Dale | |
| Series | TNPU | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| Resistance (Ohms) | 5.76k | |
| Tolerance | ±0.05% | |
| Power (Watts) | 0.125W, 1/8W | |
| Composition | Thin Film | |
| Features | Anti-Sulfur, Automotive AEC-Q200, Moisture Resistant | |
| Temperature Coefficient | ±5ppm/°C | |
| Operating Temperature | -55°C ~ 125°C | |
| Package / Case | 0805 (2012 Metric) | |
| Supplier Device Package | 0805 | |
| Size / Dimension | 0.079" L x 0.049" W (2.00mm x 1.25mm) | |
| Height | 0.022" (0.55mm) | |
| Number of Terminations | 2 | |
| Standard Package | 1,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | TNPU08055K76AZEN00 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
TNPU08055K76AZEN00 is in stock for immediate shipping now. We are the distributor of Vishay BC Components all series components. The condition of TNPU08055K76AZEN00 is new and unused, you can buy TNPU08055K76AZEN00 Vishay BC Components with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for TNPU08055K76AZEN00.
