| Manufacturer Part Number: | TND321VD-TL-H |
|---|---|
| Manufacturer: | ON Semiconductor |
| Product Category: | PMIC - Full, Half-Bridge Drivers |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | IC DVR EXPD 25V 0.8A VEC8 |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | TND321VD-TL-H Datasheet |
| Internal Part Number | 898-TND321VD-TL-H | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Category | Integrated Circuits (ICs) | |
| Family | PMIC - Full, Half-Bridge Drivers | |
| Manufacturer | ON Semiconductor | |
| Series | - | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| Output Configuration | Half Bridge (2) | |
| Applications | General Purpose | |
| Interface | Logic | |
| Load Type | Inductive | |
| Technology | Power MOSFET | |
| Rds On (Typ) | 6 Ohm LS, 11 Ohm HS | |
| Current - Output / Channel | - | |
| Current - Peak Output | 800mA, 1A | |
| Voltage - Supply | 4.5 V ~ 25 V | |
| Voltage - Load | 4.5 V ~ 25 V | |
| Operating Temperature | -55°C ~ 150°C (TJ) | |
| Features | - | |
| Fault Protection | - | |
| Mounting Type | Surface Mount | |
| Package / Case | 8-SMD, Flat Lead | |

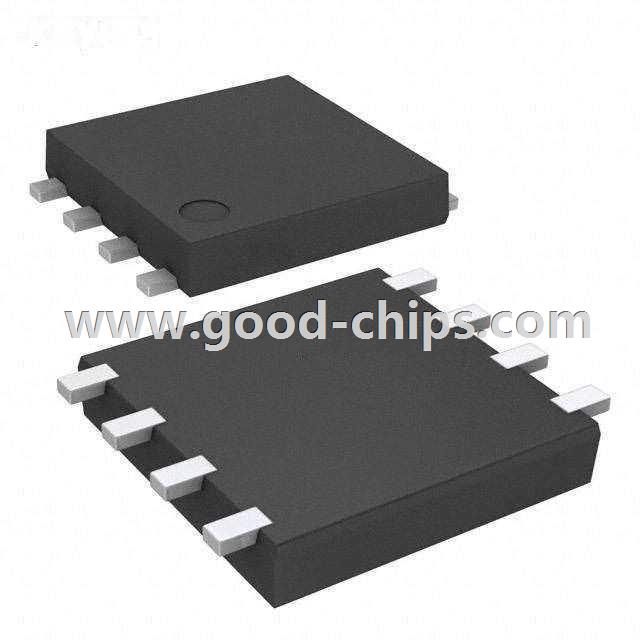

| Supplier Device Package | SOT-28FL/VEC8 | |
| Standard Package | 3,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | TND321VD-TL-H | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
TND321VD-TL-H is in stock for immediate shipping now. We are the distributor of ON Semiconductor all series components. The condition of TND321VD-TL-H is new and unused, you can buy TND321VD-TL-H ON Semiconductor with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for TND321VD-TL-H.
