| Manufacturer Part Number: | TMS320F28234ZJZS |
|---|---|
| Manufacturer: | Texas Instruments |
| Product Category: | Embedded - Microcontrollers |
| Available Quantity: | 9262 Pieces |
| Unit Price: | Quote by Email |
| Description: | C28x C2000™ C28x Delfino™ Microcontroller IC 32-Bit 150MHz 256KB (128K x 16) FLASH 176-BGA (15x15) |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 3 (168 Hours) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | TMS320F28234ZJZS Datasheet |
| Internal Part Number | 898-TMS320F28234ZJZS | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Product Training Modules | Microcontrollers: ControlSUITE - Comprehensive software for the entire design process Motor Signal Chain Overview TPS75005 Single IC Power for C2000 MCU Intro to Timers and Clocks Microcontrollers: SYS/BIOS: Introduction to Real-Time Operating Systems and SYS/BIOS | |
| Video File | Let TI and MathWorks help you launch your next motor control design - in cooperation with Digi-Key | |
| Design Resources | Development Tool Selector | |
| PCN Assembly/Origin | Wafer Fab Site 27/Apr/2016 | |
| Manufacturer Product Page | TMS320F28234ZJZS Specifications | |
| Online Catalog | TMS320F28x3x Delfino™ | |
| Category | Integrated Circuits (ICs) | |
| Family | Embedded - Microcontrollers | |
| Manufacturer | Texas Instruments | |
| Series | C2000™ C28x Delfino™ | |
| Packaging | Tray | |
| Part Status | Active | |
| Core Processor | C28x | |
| Core Size | 32-Bit | |
| Speed | 150MHz | |
| Connectivity | CAN, EBI/EMI, I²C, McBSP, SCI, SPI, UART/USART | |
| Peripherals | DMA, POR, PWM, WDT | |
| Number of I/O | 88 | |
| Program Memory Size | 256KB (128K x 16) | |
| Program Memory Type | FLASH | |
| EEPROM Size | - | |
| RAM Size | 34K x 16 | |
| Voltage - Supply (Vcc/Vdd) | 1.805 V ~ 1.995 V | |
| Data Converters | A/D 16x12b | |
| Oscillator Type | Internal | |
| Operating Temperature | -40°C ~ 125°C (TA) | |

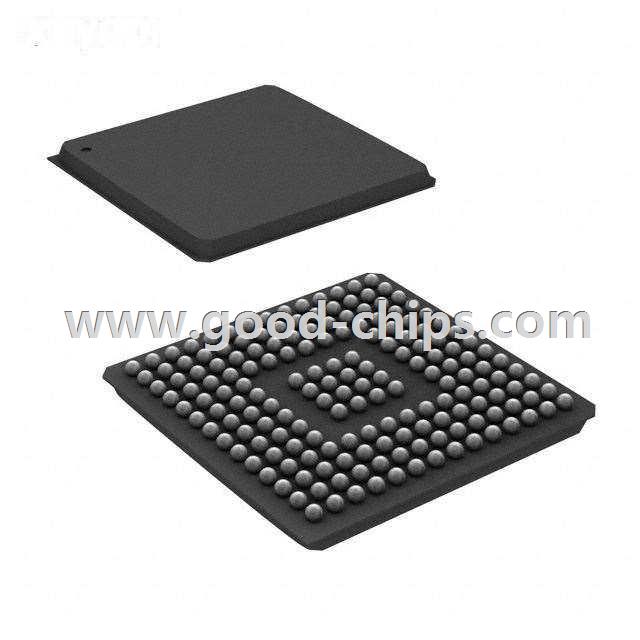

| Package / Case | 176-BGA | |
| Supplier Device Package | 176-BGA (15x15) | |
| Standard Package | 126 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | TMS320F28234ZJZS | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
TMS320F28234ZJZS is in stock for immediate shipping now. We are the distributor of Texas Instruments all series components. The condition of TMS320F28234ZJZS is new and unused, you can buy TMS320F28234ZJZS Texas Instruments with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for TMS320F28234ZJZS.
