| Manufacturer Part Number: | TMS-104-53-G-D |
|---|---|
| Manufacturer: | Samtec Inc. |
| Product Category: | Rectangular - Board to Board Connectors - Headers, Male Pins |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |

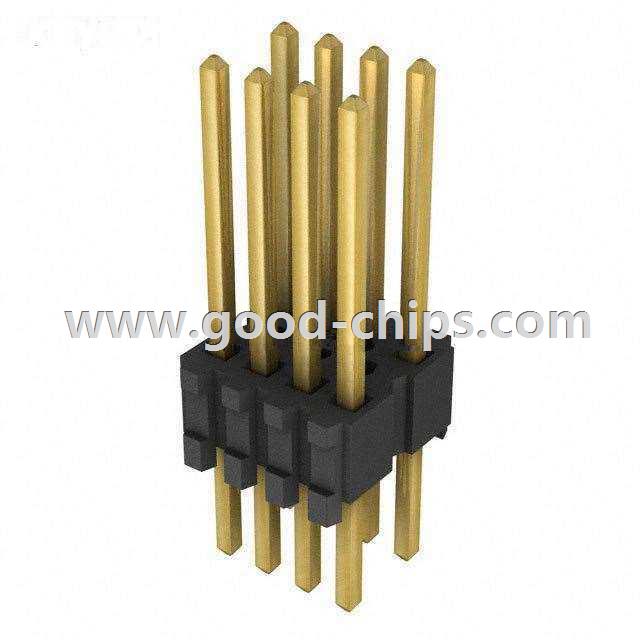

| Description: | CONN HEADER 8POS .050" T/H GOLD |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | TMS-104-53-G-D Datasheet |
| Internal Part Number | 898-TMS-104-53-G-D | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Category | Connectors, Interconnects | |
| Family | Rectangular - Board to Board Connectors - Headers, Male Pins | |
| Manufacturer | Samtec Inc. | |
| Series | TMS | |
| Packaging | Tube | |
| Part Status | Active | |
| Connector Type | Unshrouded | |
| Number of Positions | 8 | |
| Number of Positions Loaded | All | |
| Pitch | 0.050" (1.27mm) | |
| Number of Rows | 2 | |
| Row Spacing | 0.100" (2.54mm) | |
| Height Stacking (Mating) | - | |
| Molding Height Above Board | 0.100" (2.54mm) | |
| Contact Mating Length | 0.285" (7.24mm) | |
| Mounting Type | Through Hole | |
| Termination | Solder | |
| Contact Finish | Gold | |
| Contact Finish Thickness | 10µin (0.25µm) | |
| Features | - | |
| Color | Black | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | TMS-104-53-G-D | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
TMS-104-53-G-D is in stock for immediate shipping now. We are the distributor of Samtec Inc. all series components. The condition of TMS-104-53-G-D is new and unused, you can buy TMS-104-53-G-D Samtec Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for TMS-104-53-G-D.
