Manufacturer Part Number: | TMS-103-01-G-D |
---|---|
Manufacturer: | Samtec Inc. |
Product Category: | Rectangular - Board to Board Connectors - Headers, Male Pins |
Available Quantity: | 9010 Pieces |
Unit Price: | Quote by Email |

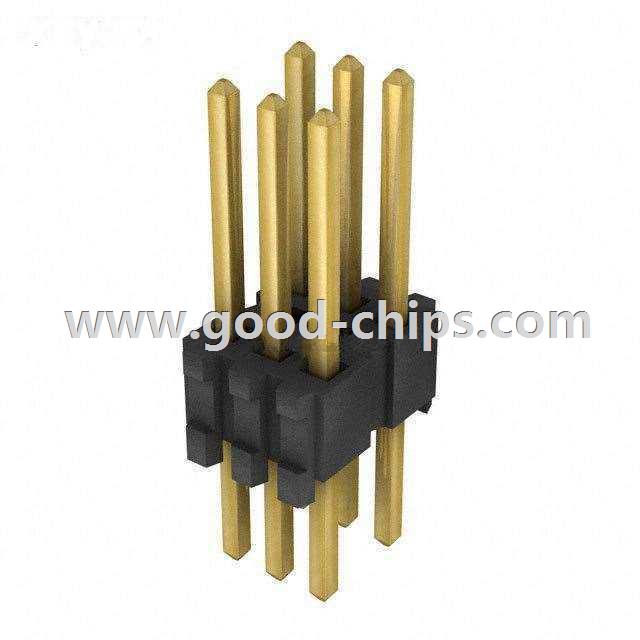

Description: | CONN HEADER 6POS .050" T/H GOLD |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | TMS-103-01-G-D Datasheet |
Internal Part Number | 898-TMS-103-01-G-D | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Category | Connectors, Interconnects | |
Family | Rectangular - Board to Board Connectors - Headers, Male Pins | |
Manufacturer | Samtec Inc. | |
Series | TMS | |
Packaging | Tube | |
Part Status | Active | |
Connector Type | Unshrouded | |
Number of Positions | 6 | |
Number of Positions Loaded | All | |
Pitch | 0.050" (1.27mm) | |
Number of Rows | 2 | |
Row Spacing | 0.100" (2.54mm) | |
Height Stacking (Mating) | - | |
Molding Height Above Board | 0.100" (2.54mm) | |
Contact Mating Length | 0.230" (5.84mm) | |
Mounting Type | Through Hole | |
Termination | Solder | |
Contact Finish | Gold | |
Contact Finish Thickness | 10µin (0.25µm) | |
Features | - | |
Color | Black | |
Standard Package | 1 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | TMS-103-01-G-D | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
TMS-103-01-G-D is in stock for immediate shipping now. We are the distributor of Samtec Inc. all series components. The condition of TMS-103-01-G-D is new and unused, you can buy TMS-103-01-G-D Samtec Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for TMS-103-01-G-D.
