| Manufacturer Part Number: | TMPSNSRD-TCPL1 |
|---|---|
| Manufacturer: | Microchip Technology |
| Product Category: | Evaluation Boards - Sensors |
| Available Quantity: | 9026 Pieces |
| Unit Price: | Quote by Email |

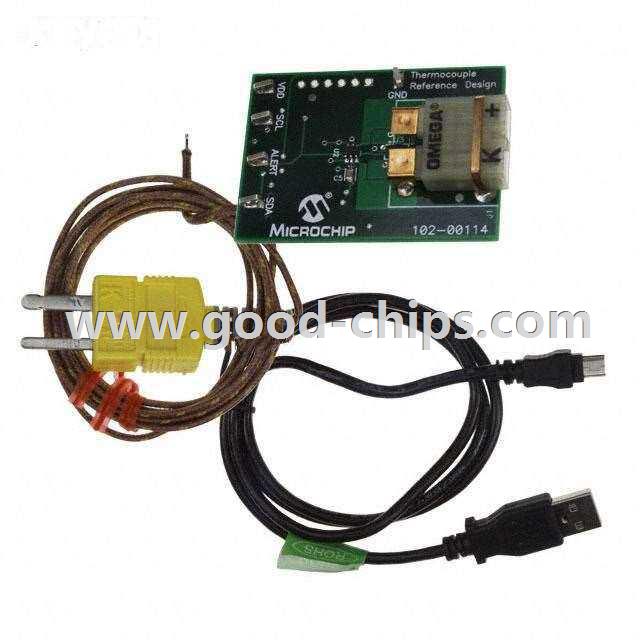

| Description: | MCP3421, MCP9804 - Temperature, Thermocouple Sensor Evaluation Board |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | TMPSNSRD-TCPL1 Datasheet |
| Internal Part Number | 898-TMPSNSRD-TCPL1 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Product Training Modules | MCP3901 Analog Front End | |
| Software Download | Thermal Management Utility v1.3.2 | |
| Design Resources | Development Tool Selector | |
| Reference Design Library | TMPSNSRD-TCPL1: Thermocouple, 18-bit Res, USB, I2C | |
| PCN Packaging | Label and Packing Changes 23/Sep/2015 | |
| Online Catalog | MCP3421 and MCP9804 Thermocouple Reference Design Board | |
| Category | Programmers, Development Systems | |
| Family | Evaluation Boards - Sensors | |
| Manufacturer | Microchip Technology | |
| Series | - | |
| Part Status | Active | |
| Sensor Type | Temperature, Thermocouple | |
| Sensing Range | - | |
| Interface | - | |
| Sensitivity | - | |
| Voltage - Supply | - | |
| Embedded | No | |
| Supplied Contents | Board | |
| Utilized IC / Part | MCP3421, MCP9804 | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | TMPSNSRD-TCPL1 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
TMPSNSRD-TCPL1 is in stock for immediate shipping now. We are the distributor of Microchip Technology all series components. The condition of TMPSNSRD-TCPL1 is new and unused, you can buy TMPSNSRD-TCPL1 Microchip Technology with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for TMPSNSRD-TCPL1.
