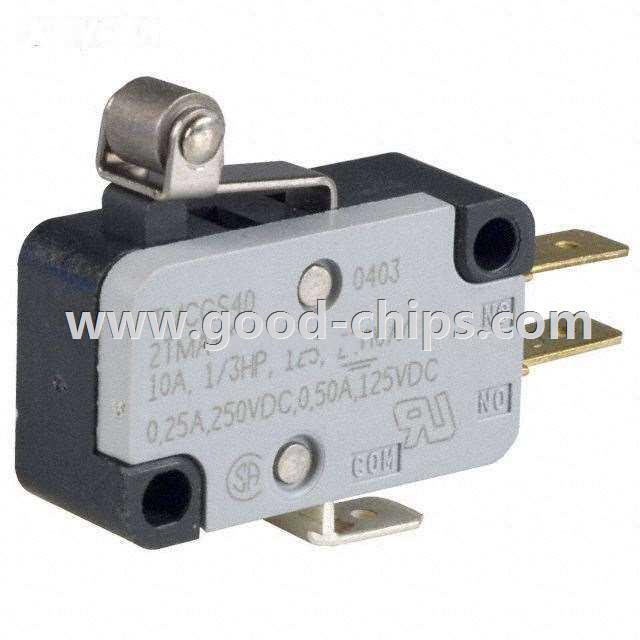

Manufacturer Part Number: | TMCGD6SA1040C |
---|---|
Manufacturer: | C&K Components |
Product Category: | Snap Action, Limit Switches |
Available Quantity: | 9039 Pieces |
Unit Price: | Quote by Email |
Description: | SWITCH SNAP ACTION SPDT 10A 125V |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | TMCGD6SA1040C Datasheet |
Internal Part Number | 898-TMCGD6SA1040C | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Product Training Modules | Sub-Miniature Snap Switches Introduction to Electromechanical Switches | |
Online Catalog | TM Series | |
Category | Switches | |
Family | Snap Action, Limit Switches | |
Manufacturer | C&K Components | |
Series | TM | |
Packaging | Bulk | |
Part Status | Active | |
Circuit | SPDT | |
Switch Function | On-Mom | |
Current Rating | 10A (AC), 500mA (DC) | |
Voltage Rating - AC | 125V | |
Voltage Rating - DC | 125V | |
Actuator Type | Lever, Roller | |
Mounting Type | Chassis Mount | |
Termination Style | Quick Connect - 0.187" (4.7mm) | |
Ingress Protection | - | |
Features | - | |
Operating Force, Torque | 90gf | |
Release Force | 28gf | |
Pretravel | 0.071" (1.8mm) | |
Differential Travel | 0.013" (0.33mm) | |
Overtravel | 0.035" (0.9mm) | |
Operating Position | 0.812" (20.6mm) | |
Mechanical Life | - | |
Electrical Life | 350,000 Cycles | |
Operating Temperature | -55°C ~ 150°C | |
Standard Package | 1 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | TMCGD6SA1040C | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
TMCGD6SA1040C is in stock for immediate shipping now. We are the distributor of C&K Components all series components. The condition of TMCGD6SA1040C is new and unused, you can buy TMCGD6SA1040C C&K Components with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for TMCGD6SA1040C.
