| Manufacturer Part Number: | TMC246B-PA |
|---|---|
| Manufacturer: | Trinamic Motion Control GmbH |
| Product Category: | PMIC - Motor Drivers, Controllers |
| Available Quantity: | 9970 Pieces |
| Unit Price: | Quote by Email |
| Description: | Bipolar Motor Driver HVCMOS SPI 44-PQFP (10x10) |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 3 (168 Hours) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | TMC246B-PA Datasheet |
| Internal Part Number | 898-TMC246B-PA | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Online Catalog | Drivers | |
| Category | Integrated Circuits (ICs) | |
| Family | PMIC - Motor Drivers, Controllers | |
| Manufacturer | Trinamic Motion Control GmbH | |
| Series | stallGuard™ | |
| Packaging | Tray | |
| Part Status | Active | |
| Motor Type - Stepper | Bipolar | |
| Motor Type - AC, DC | - | |
| Function | Driver - Fully Integrated, Control and Power Stage | |
| Output Configuration | Half Bridge (4) | |
| Interface | SPI | |
| Technology | HVCMOS | |
| Step Resolution | 1, 1/2, 1/4, 1/8, 1/16 | |
| Applications | General Purpose | |
| Current - Output | 1.5A | |
| Voltage - Supply | 3 V ~ 5.5 V | |
| Voltage - Load | 7 V ~ 34 V | |
| Operating Temperature | -40°C ~ 140°C (TJ) | |
| Mounting Type | Surface Mount | |

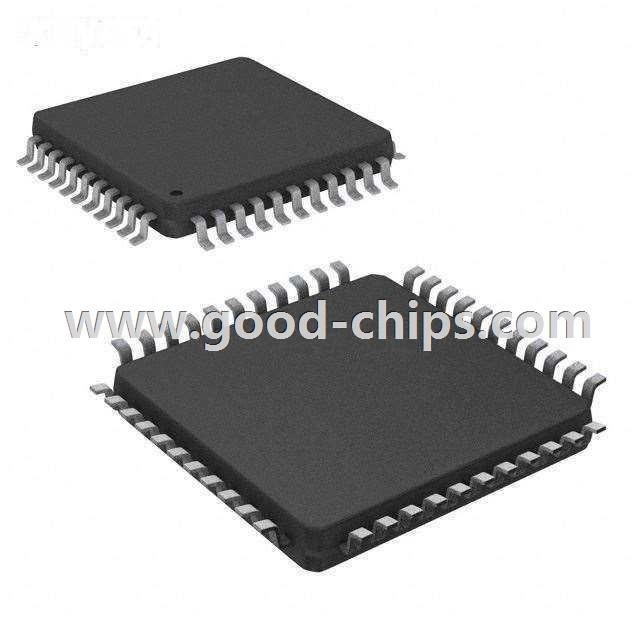

| Package / Case | 44-LQFP | |
| Supplier Device Package | 44-PQFP (10x10) | |
| Standard Package | 160 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | TMC246B-PA | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
TMC246B-PA is in stock for immediate shipping now. We are the distributor of Trinamic Motion Control GmbH all series components. The condition of TMC246B-PA is new and unused, you can buy TMC246B-PA Trinamic Motion Control GmbH with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for TMC246B-PA.
