| Manufacturer Part Number: | TM11RD-5TANA-A-88-LP |
|---|---|
| Manufacturer: | Hirose Electric Co Ltd |
| Product Category: | Modular Connectors - Jacks With Magnetics |
| Available Quantity: | 9528 Pieces |
| Unit Price: | Quote by Email |

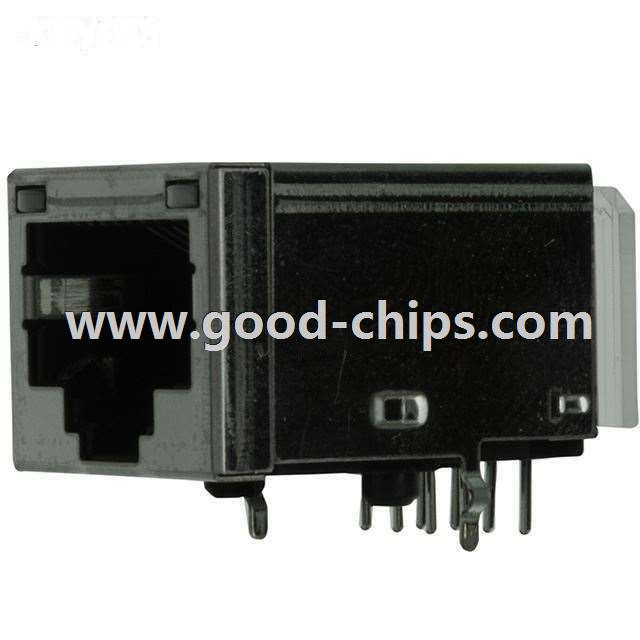

| Description: | 1 Port RJ45 Magjack Connector Through Hole 10/100 Base-T |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | TM11RD-5TANA-A-88-LP Datasheet |
| Internal Part Number | 898-TM11RD-5TANA-A-88-LP | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Online Catalog | TM11R Series | |
| Category | Connectors, Interconnects | |
| Family | Modular Connectors - Jacks With Magnetics | |
| Manufacturer | Hirose Electric Co Ltd | |
| Series | TM11R | |
| Packaging | Tray | |
| Part Status | Active | |
| Connector Type | RJ45 | |
| Number of Ports | 1 | |
| Number of Rows | 1 | |
| Applications | 10/100 Base-T | |
| Mounting Type | Through Hole | |
| Orientation | 90° Angle (Right) | |
| Termination | Solder | |
| Height Above Board | 0.536" (13.61mm) | |
| LED Color | - | |
| Number of Cores per Jack | 5 | |
| Shielding | Shielded | |
| Features | Board Guide, Board Lock, Light Pipe | |
| Tab Direction | Down | |
| Contact Material | Copper Alloy | |
| Contact Finish | Gold | |
| Contact Finish Thickness | 50µin (1.27µm) | |
| Shield Material | Copper Alloy | |
| Housing Material | Polybutylene Terephthalate (PBT) | |
| Operating Temperature | -25°C ~ 80°C | |
| Standard Package | 90 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | TM11RD-5TANA-A-88-LP | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
TM11RD-5TANA-A-88-LP is in stock for immediate shipping now. We are the distributor of Hirose Electric Co Ltd all series components. The condition of TM11RD-5TANA-A-88-LP is new and unused, you can buy TM11RD-5TANA-A-88-LP Hirose Electric Co Ltd with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for TM11RD-5TANA-A-88-LP.
