| Manufacturer Part Number: | TLV71128518DDSER |
|---|---|
| Manufacturer: | Texas Instruments |
| Product Category: | PMIC - Voltage Regulators - Linear |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | Linear Voltage Regulator IC Positive Fixed 2 Output 2.85V, 1.8V 200mA 6-WSON (1.5x1.5) |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | TLV71128518DDSER Datasheet |
| Internal Part Number | 898-TLV71128518DDSER | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| PCN Design/Specification | Material Set 21/Jun/2016 | |
| PCN Assembly/Origin | Assembly Material Set Update 19/Aug/2015 | |
| PCN Other | Assembly Site/Material 17/Jul/2013 | |
| EDA / CAD Models | Download from Accelerated Designs | |
| Online Catalog | Positive Fixed, Multi-Output | |
| Category | Integrated Circuits (ICs) | |
| Family | PMIC - Voltage Regulators - Linear | |
| Manufacturer | Texas Instruments | |
| Series | - | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| Regulator Topology | Positive Fixed | |
| Voltage - Output | 2.85V, 1.8V | |
| Current - Output | 200mA | |
| Voltage - Dropout (Typical) | 0.15V @ 200mA, - | |
| Number of Regulators | 2 | |
| Voltage - Input | 2 V ~ 5.5 V | |
| Current - Limit (Min) | 220mA | |
| Operating Temperature | -40°C ~ 125°C | |
| Mounting Type | Surface Mount | |

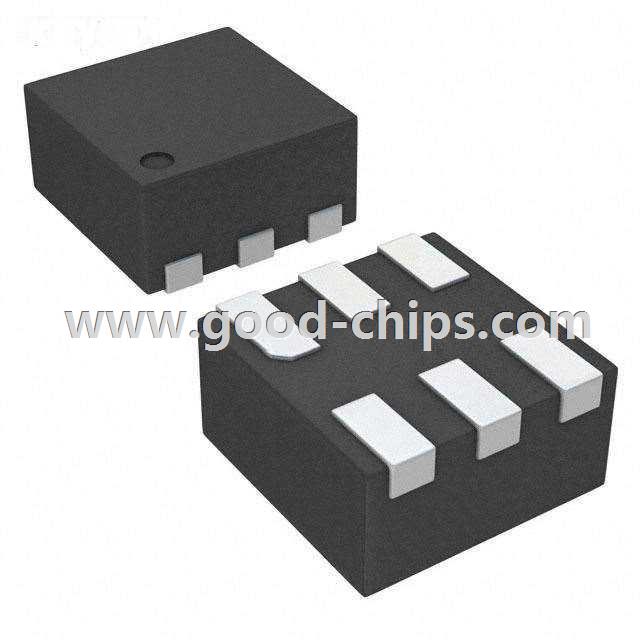

| Package / Case | 6-WFDFN | |
| Supplier Device Package | 6-WSON (1.5x1.5) | |
| Standard Package | 3,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | TLV71128518DDSER | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
TLV71128518DDSER is in stock for immediate shipping now. We are the distributor of Texas Instruments all series components. The condition of TLV71128518DDSER is new and unused, you can buy TLV71128518DDSER Texas Instruments with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for TLV71128518DDSER.
