| Manufacturer Part Number: | TLV62065DSGT |
|---|---|
| Manufacturer: | Texas Instruments |
| Product Category: | PMIC - Voltage Regulators - DC DC Switching Regulators |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | Buck Switching Regulator IC Positive Adjustable 0.8V 1 Output 2A 8-WFDFN Exposed Pad |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 2 (1 Year) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | TLV62065DSGT Datasheet |
| Internal Part Number | 898-TLV62065DSGT | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| PCN Assembly/Origin | Additional Assembly and Test Site 04/Nov/2013 Assembly/Test Site Addition 16/Dec/2014 Assembly/Test Site Revision A 15/Jan/2015 Assembly/Test Site Revision B 30/Jan/2015 | |
| EDA / CAD Models | Download from Accelerated Designs | |
| Online Catalog | Buck (Step-Down) IC | |
| Category | Integrated Circuits (ICs) | |
| Family | PMIC - Voltage Regulators - DC DC Switching Regulators | |
| Manufacturer | Texas Instruments | |
| Series | - | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| Function | Step-Down | |
| Output Configuration | Positive | |
| Topology | Buck | |
| Output Type | Adjustable | |
| Number of Outputs | 1 | |
| Voltage - Input (Min) | 2.9V | |
| Voltage - Input (Max) | 5.5V | |
| Voltage - Output (Min/Fixed) | 0.8V | |
| Voltage - Output (Max) | 5.5V | |
| Current - Output | 2A | |
| Frequency - Switching | 3MHz | |
| Synchronous Rectifier | Yes | |
| Operating Temperature | -40°C ~ 85°C (TA) | |
| Mounting Type | Surface Mount | |

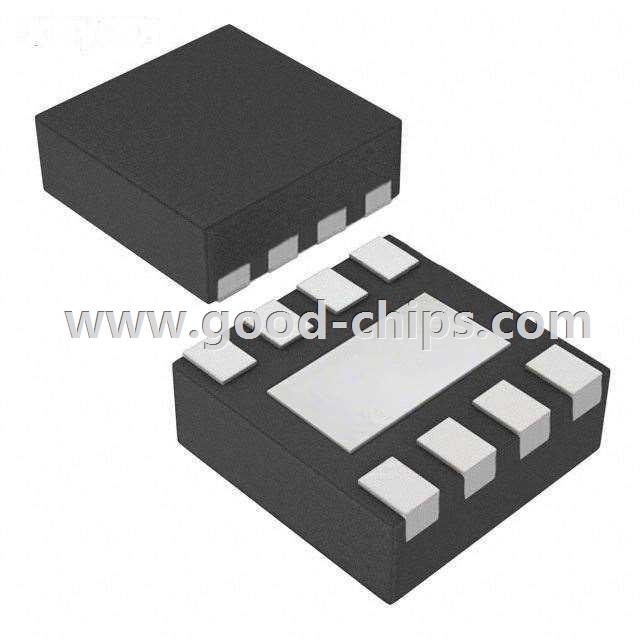

| Package / Case | 8-WFDFN Exposed Pad | |
| Supplier Device Package | 8-WSON (2x2) | |
| Standard Package | 250 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | TLV62065DSGT | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
TLV62065DSGT is in stock for immediate shipping now. We are the distributor of Texas Instruments all series components. The condition of TLV62065DSGT is new and unused, you can buy TLV62065DSGT Texas Instruments with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for TLV62065DSGT.
