| Manufacturer Part Number: | TLP4197G(F) |
|---|---|
| Manufacturer: | Toshiba Semiconductor and Storage |
| Product Category: | Solid State Relays |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | Solid State Relay SPST-NC (1 Form B) 6-SOP (0.173", 4.40mm) |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | TLP4197G(F) Datasheet |
| Internal Part Number | 898-TLP4197G(F) | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Category | Relays | |
| Family | Solid State Relays | |
| Manufacturer | Toshiba Semiconductor and Storage | |
| Series | TLP4197G | |
| Packaging | Bulk | |
| Part Status | Active | |
| Circuit | SPST-NC (1 Form B) | |
| Output Type | AC, DC | |
| On-State Resistance (Max) | 25 Ohm | |
| Load Current | 120mA | |
| Voltage - Input | 1.15VDC | |
| Voltage - Load | 0 ~ 350 V | |
| Mounting Type | Surface Mount | |
| Termination Style | Gull Wing | |

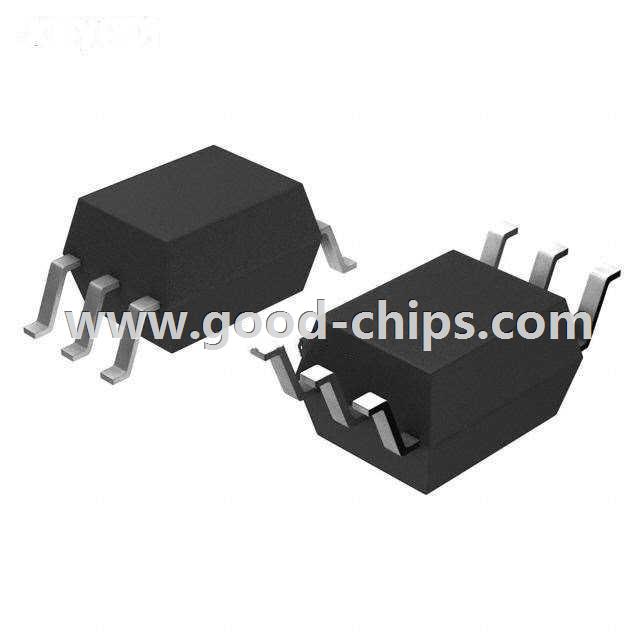

| Package / Case | 6-SOP (0.173", 4.40mm) | |
| Supplier Device Package | 6-SOP (2.54mm) | |
| Relay Type | Relay | |
| Standard Package | 75 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | TLP4197G(F) | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
TLP4197G(F) is in stock for immediate shipping now. We are the distributor of Toshiba Semiconductor and Storage all series components. The condition of TLP4197G(F) is new and unused, you can buy TLP4197G(F) Toshiba Semiconductor and Storage with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for TLP4197G(F).
