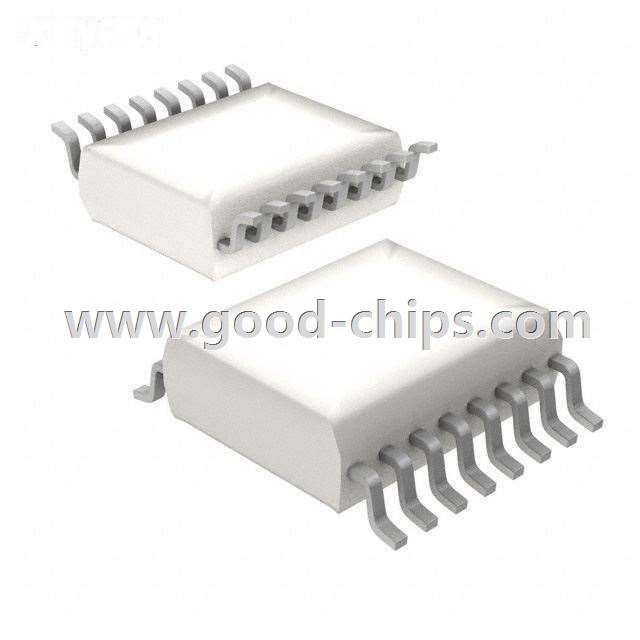

| Manufacturer Part Number: | TLP281-4(GB-TP,J,F |
|---|---|
| Manufacturer: | Toshiba Semiconductor and Storage |
| Product Category: | Optoisolators - Transistor, Photovoltaic Output |
| Available Quantity: | 61510 Pieces |
| Unit Price: | Quote by Email |
| Description: | Optoisolator Transistor Output 2500Vrms 4 Channel 16-SOP |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | TLP281-4(GB-TP,J,F Datasheet |
| Internal Part Number | 898-TLP281-4(GB-TP,J,F | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Online Catalog | TLP281-4 Series | |
| Category | Isolators | |
| Family | Optoisolators - Transistor, Photovoltaic Output | |
| Manufacturer | Toshiba Semiconductor and Storage | |
| Series | - | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| Number of Channels | 4 | |
| Voltage - Isolation | 2500Vrms | |
| Current Transfer Ratio (Min) | 100% @ 5mA | |
| Current Transfer Ratio (Max) | 600% @ 5mA | |
| Turn On / Turn Off Time (Typ) | 3µs, 3µs | |
| Rise / Fall Time (Typ) | 2µs, 3µs | |
| Input Type | DC | |
| Output Type | Transistor | |
| Voltage - Output (Max) | 80V | |
| Current - Output / Channel | 50mA | |
| Voltage - Forward (Vf) (Typ) | 1.15V | |
| Current - DC Forward (If) (Max) | 50mA | |
| Vce Saturation (Max) | 400mV | |
| Operating Temperature | -55°C ~ 100°C | |
| Mounting Type | Surface Mount | |
| Package / Case | 16-SOIC (0.173", 4.40mm Width) | |
| Supplier Device Package | 16-SOP | |
| Standard Package | 2,500 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | TLP281-4(GB-TP,J,F | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
TLP281-4(GB-TP,J,F is in stock for immediate shipping now. We are the distributor of Toshiba Semiconductor and Storage all series components. The condition of TLP281-4(GB-TP,J,F is new and unused, you can buy TLP281-4(GB-TP,J,F Toshiba Semiconductor and Storage with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for TLP281-4(GB-TP,J,F.
