| Manufacturer Part Number: | TLE6228GP |
|---|---|
| Manufacturer: | Infineon Technologies |
| Product Category: | PMIC - Power Distribution Switches, Load Drivers |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | IC SW SMART QUAD LOWSIDE PDSO20 |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 3 (168 Hours) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | TLE6228GP Datasheet |
| Internal Part Number | 898-TLE6228GP | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| EDA / CAD Models | Download from Accelerated Designs | |
| Online Catalog | General Purpose | |
| Category | Integrated Circuits (ICs) | |
| Family | PMIC - Power Distribution Switches, Load Drivers | |
| Manufacturer | Infineon Technologies | |
| Series | - | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| Switch Type | General Purpose | |
| Number of Outputs | 4 | |
| Ratio - Input:Output | 1:1 | |
| Output Configuration | Low Side | |
| Output Type | N-Channel | |
| Interface | On/Off | |
| Voltage - Load | 4.8 V ~ 32 V | |
| Voltage - Supply (Vcc/Vdd) | Not Required | |
| Current - Output (Max) | - | |
| Rds On (Typ) | 230 mOhm, 280 mOhm | |
| Input Type | Non-Inverting | |
| Features | - | |
| Fault Protection | Open Load Detect, Over Temperature, Over Voltage | |
| Operating Temperature | -40°C ~ 150°C (TJ) | |

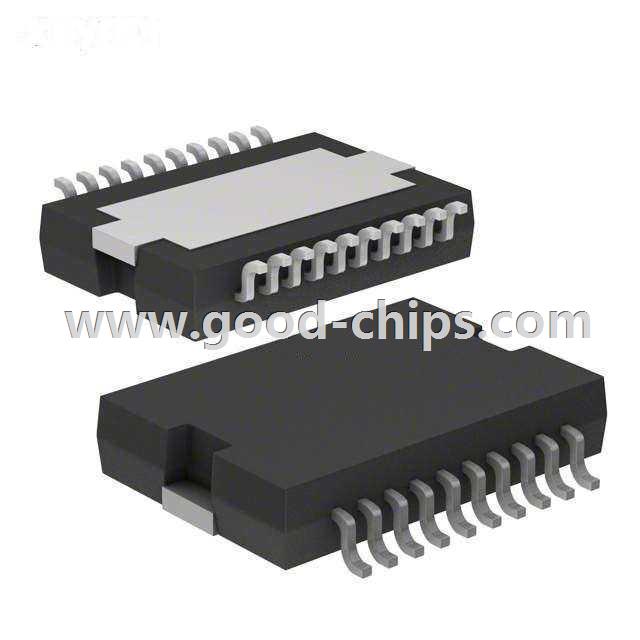

| Package / Case | 20-SOIC (0.433", 11.00mm Width) Exposed Pad | |
| Supplier Device Package | PG-DSO-20-65 | |
| Standard Package | 800 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | TLE6228GP | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
TLE6228GP is in stock for immediate shipping now. We are the distributor of Infineon Technologies all series components. The condition of TLE6228GP is new and unused, you can buy TLE6228GP Infineon Technologies with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for TLE6228GP.
