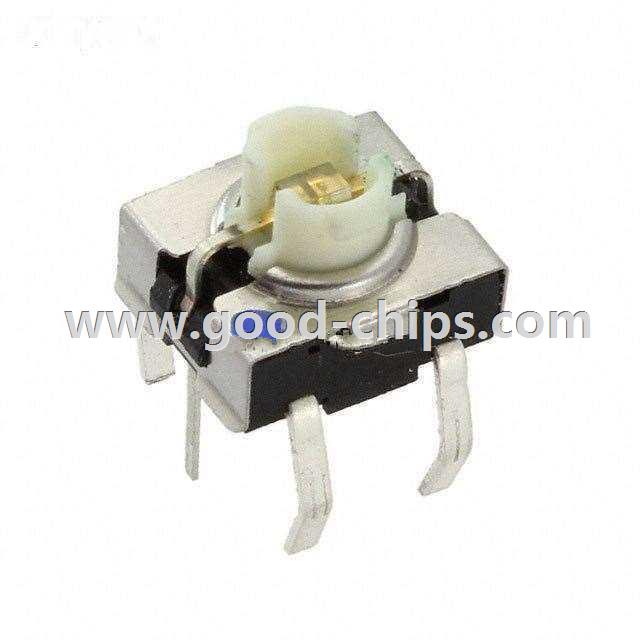

| Manufacturer Part Number: | TL6215VF200BNN |
|---|---|
| Manufacturer: | E-Switch |
| Product Category: | Tactile Switches |
| Available Quantity: | 9109 Pieces |
| Unit Price: | Quote by Email |
| Description: | Tactile Switch SPST-NO Top Actuated Through Hole |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | TL6215VF200BNN Datasheet |
| Internal Part Number | 898-TL6215VF200BNN | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Featured Product | TL6215 Series Tact Switches | |
| Online Catalog | TL6215 Series | |
| Category | Switches | |
| Family | Tactile Switches | |
| Manufacturer | E-Switch | |
| Series | TL6215 | |
| Packaging | Tray | |
| Part Status | Active | |
| Circuit | SPST-NO | |
| Switch Function | Off-Mom | |
| Contact Rating @ Voltage | 0.05A @ 12VDC | |
| Actuator Type | Plunger for Cap | |
| Mounting Type | Through Hole | |
| Actuator Height off PCB, from Pins | 5.35mm | |
| Actuator Orientation | Top Actuated | |
| Termination Style | PC Pin | |
| Outline | 7.70mm x 6.37mm | |
| Illumination | Illuminated | |
| Illumination Voltage (Nominal) | 3.3 VDC | |
| Illumination Type, Color | LED, Blue | |
| Operating Force | 200gf | |
| Ingress Protection | IP67 - Dust Tight, Waterproof | |
| Features | - | |
| Actuator Material | - | |
| Switch Travel | 0.45mm | |
| Mechanical Life | 500,000 Cycles | |
| Operating Temperature | -20°C ~ 70°C | |
| Standard Package | 100 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | TL6215VF200BNN | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
TL6215VF200BNN is in stock for immediate shipping now. We are the distributor of E-Switch all series components. The condition of TL6215VF200BNN is new and unused, you can buy TL6215VF200BNN E-Switch with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for TL6215VF200BNN.
