| Manufacturer Part Number: | TL1250F280RQRCLR |
|---|---|
| Manufacturer: | E-Switch |
| Product Category: | Tactile Switches |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |

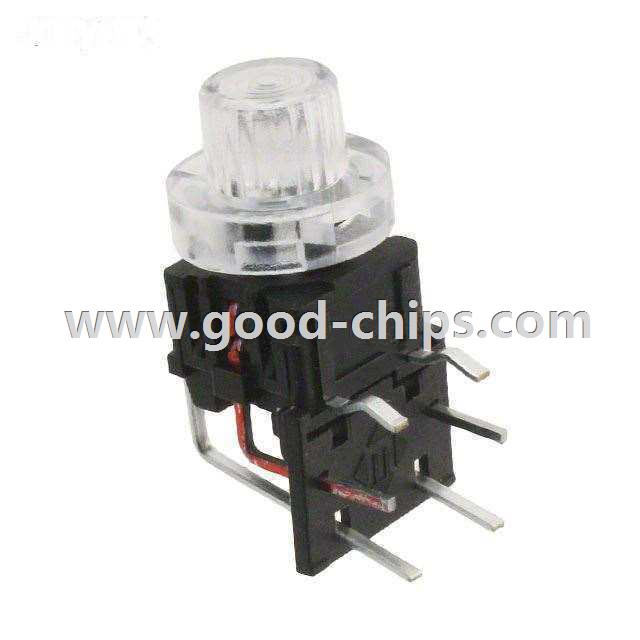

| Description: | Tactile Switch SPST-NO Side Actuated Through Hole, Right Angle |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | TL1250F280RQRCLR Datasheet |
| Internal Part Number | 898-TL1250F280RQRCLR | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| RoHS Information | TL1250 Series RoHS Cert of Compliance | |
| 3D Model | TL1250FyyyyyRCLR.stp | |
| Category | Switches | |
| Family | Tactile Switches | |
| Manufacturer | E-Switch | |
| Series | TL1250 | |
| Packaging | Tube | |
| Part Status | Active | |
| Circuit | SPST-NO | |
| Switch Function | Off-Mom | |
| Contact Rating @ Voltage | 0.05A @ 12VDC | |
| Actuator Type | Round Button | |
| Mounting Type | Through Hole, Right Angle | |
| Actuator Height off PCB, from Pins | 10.70mm | |
| Actuator Orientation | Side Actuated | |
| Termination Style | PC Pin | |
| Outline | 8.30mm x 7.00mm | |
| Illumination | Illuminated | |
| Illumination Voltage (Nominal) | 2.3 VDC | |
| Illumination Type, Color | LED, Red | |
| Operating Force | 280gf | |
| Ingress Protection | - | |
| Features | Tactile Feedback | |
| Actuator Material | - | |
| Switch Travel | 0.20mm | |
| Mechanical Life | 50,000 Cycles | |
| Operating Temperature | -20°C ~ 70°C | |
| Standard Package | 100 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | TL1250F280RQRCLR | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
TL1250F280RQRCLR is in stock for immediate shipping now. We are the distributor of E-Switch all series components. The condition of TL1250F280RQRCLR is new and unused, you can buy TL1250F280RQRCLR E-Switch with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for TL1250F280RQRCLR.
