| Manufacturer Part Number: | TIL111M |
|---|---|
| Manufacturer: | Fairchild Semiconductor |
| Product Category: | Optoisolators - Transistor, Photovoltaic Output |
| Available Quantity: | 9486 Pieces |
| Unit Price: | Quote by Email |
| Description: | Optoisolator Transistor with Base Output 7500Vpk 1 Channel 6-DIP |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | TIL111M Datasheet |
| Internal Part Number | 898-TIL111M | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Online Catalog | TIL111M, 117M Series | |
| Category | Isolators | |
| Family | Optoisolators - Transistor, Photovoltaic Output | |
| Manufacturer | Fairchild Semiconductor | |
| Series | - | |
| Packaging | Tube | |
| Part Status | Active | |
| Number of Channels | 1 | |
| Voltage - Isolation | 7500Vpk | |
| Current Transfer Ratio (Min) | - | |
| Current Transfer Ratio (Max) | - | |
| Turn On / Turn Off Time (Typ) | - | |
| Rise / Fall Time (Typ) | 10µs, 10µs (Max) | |
| Input Type | DC | |
| Output Type | Transistor with Base | |
| Voltage - Output (Max) | 30V | |
| Current - Output / Channel | 2mA | |
| Voltage - Forward (Vf) (Typ) | 1.2V | |
| Current - DC Forward (If) (Max) | 60mA | |
| Vce Saturation (Max) | 400mV | |
| Operating Temperature | -40°C ~ 100°C | |
| Mounting Type | Through Hole | |

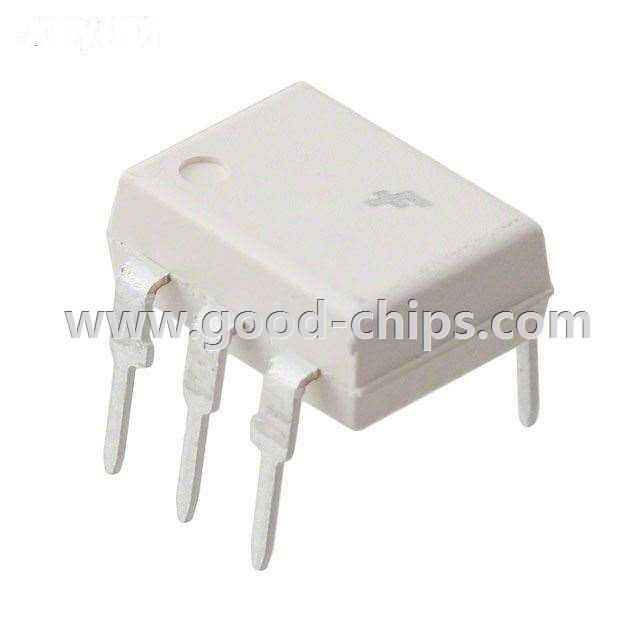

| Package / Case | 6-DIP (0.300", 7.62mm) | |
| Supplier Device Package | 6-DIP | |
| Standard Package | 1,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | TIL111M | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
TIL111M is in stock for immediate shipping now. We are the distributor of Fairchild Semiconductor all series components. The condition of TIL111M is new and unused, you can buy TIL111M Fairchild Semiconductor with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for TIL111M.
