Manufacturer Part Number: | THS3122CDDAG3 |
---|---|
Manufacturer: | Texas Instruments |
Product Category: | Linear - Amplifiers - Instrumentation, OP Amps, Buffer Amps |
Available Quantity: | 9010 Pieces |
Unit Price: | Quote by Email |
Description: | Current Feedback Amplifier 2 Circuit 8-SO PowerPad |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | THS3122CDDAG3 Datasheet |
Internal Part Number | 898-THS3122CDDAG3 | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Featured Product | Create your power design now with TI’s WEBENCH® Designer | |
PCN Design/Specification | Datasheet Update 12/Jun/2015 | |
Category | Integrated Circuits (ICs) | |
Family | Linear - Amplifiers - Instrumentation, OP Amps, Buffer Amps | |
Manufacturer | Texas Instruments | |
Series | - | |
Packaging | Tube | |
Part Status | Active | |
Amplifier Type | Current Feedback | |
Number of Circuits | 2 | |
Output Type | - | |
Slew Rate | 1550 V/µs | |
Gain Bandwidth Product | - | |
-3db Bandwidth | 160MHz | |
Current - Input Bias | 6µA | |
Voltage - Input Offset | 4.4mV | |
Current - Supply | 8.4mA | |
Current - Output / Channel | 440mA | |
Voltage - Supply, Single/Dual (±) | 10 V ~ 30 V, ±5 V ~ 15 V | |
Operating Temperature | 0°C ~ 70°C | |
Mounting Type | Surface Mount | |

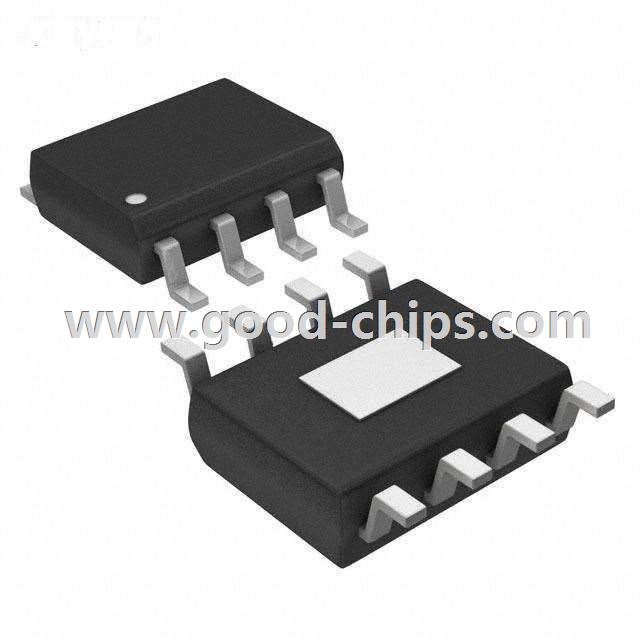

Package / Case | 8-PowerSOIC (0.154", 3.90mm Width) | |
Supplier Device Package | 8-SO PowerPad | |
Standard Package | 75 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | THS3122CDDAG3 | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
THS3122CDDAG3 is in stock for immediate shipping now. We are the distributor of Texas Instruments all series components. The condition of THS3122CDDAG3 is new and unused, you can buy THS3122CDDAG3 Texas Instruments with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for THS3122CDDAG3.
