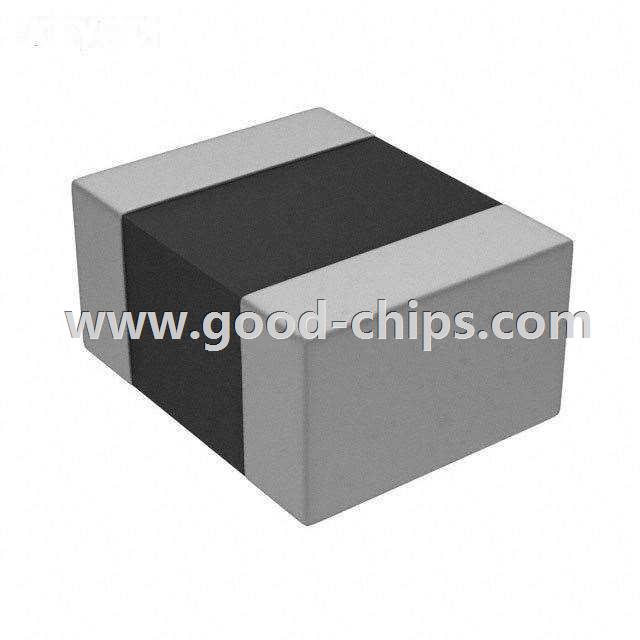

| Manufacturer Part Number: | TFM201610GHM-2R2MTAA |
|---|---|
| Manufacturer: | TDK Corporation |
| Product Category: | Fixed Inductors |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | 2.2µH Shielded Thin Film Inductor 1.9A 152 mOhm Max 0806 (2016 Metric) |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | TFM201610GHM-2R2MTAA Datasheet |
| Internal Part Number | 898-TFM201610GHM-2R2MTAA | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Featured Product | TFM201610 Series Power Inductors | |
| Online Catalog | TFM Series | |
| Category | Inductors, Coils, Chokes | |
| Family | Fixed Inductors | |
| Manufacturer | TDK Corporation | |
| Series | TFM-GHM | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| Type | Thin Film | |
| Material - Core | Metal | |
| Inductance | 2.2µH | |
| Tolerance | ±20% | |
| Current Rating | 1.9A | |
| Current - Saturation | 2.4A | |
| Shielding | Shielded | |
| DC Resistance (DCR) | 152 mOhm Max | |
| Q @ Freq | - | |
| Frequency - Self Resonant | - | |
| Ratings | - | |
| Operating Temperature | -40°C ~ 125°C | |
| Frequency - Test | 1MHz | |
| Mounting Type | Surface Mount | |
| Package / Case | 0806 (2016 Metric) | |
| Size / Dimension | 0.079" L x 0.063" W (2.00mm x 1.60mm) | |
| Height - Seated (Max) | 0.039" (1.00mm) | |
| Standard Package | 3,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | TFM201610GHM-2R2MTAA | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
TFM201610GHM-2R2MTAA is in stock for immediate shipping now. We are the distributor of TDK Corporation all series components. The condition of TFM201610GHM-2R2MTAA is new and unused, you can buy TFM201610GHM-2R2MTAA TDK Corporation with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for TFM201610GHM-2R2MTAA.
