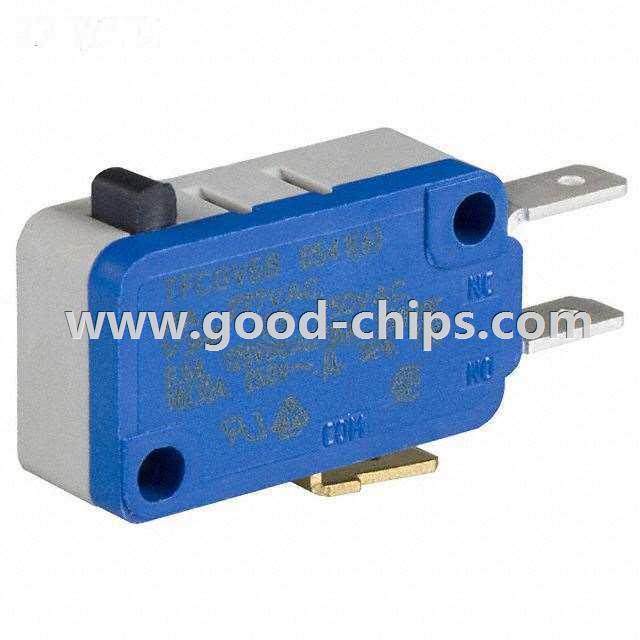

| Manufacturer Part Number: | TFCGV3VP005BC |
|---|---|
| Manufacturer: | C&K Components |
| Product Category: | Snap Action, Limit Switches |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | SWITCH SNAP ACTION SPDT 11A 277V |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | Obsolete / Discontinued |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | TFCGV3VP005BC Datasheet |
| Internal Part Number | 898-TFCGV3VP005BC | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| PCN Design/Specification | VDE removal for TF, HB, PM 20/May/2013 | |
| Category | Switches | |
| Family | Snap Action, Limit Switches | |
| Manufacturer | C&K Components | |
| Series | TF | |
| Packaging | Bulk | |
| Part Status | Obsolete | |
| Circuit | SPDT | |
| Switch Function | On-Mom | |
| Current Rating | 11A (AC), 500mA (DC) | |
| Voltage Rating - AC | 277V | |
| Voltage Rating - DC | 125V | |
| Actuator Type | Round (Pin Plunger) | |
| Mounting Type | Chassis Mount | |
| Termination Style | Quick Connect - 0.187" (4.7mm) | |
| Ingress Protection | - | |
| Features | - | |
| Operating Force, Torque | 75gf | |
| Release Force | 15gf | |
| Pretravel | 0.047" (1.2mm) | |
| Differential Travel | 0.010" (0.25mm) | |
| Overtravel | 0.050" (1.27mm) | |
| Operating Position | 0.579" (14.7mm) | |
| Mechanical Life | - | |
| Electrical Life | - | |
| Operating Temperature | -40°C ~ 85°C | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | TFCGV3VP005BC | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
TFCGV3VP005BC is in stock for immediate shipping now. We are the distributor of C&K Components all series components. The condition of TFCGV3VP005BC is new and unused, you can buy TFCGV3VP005BC C&K Components with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for TFCGV3VP005BC.
