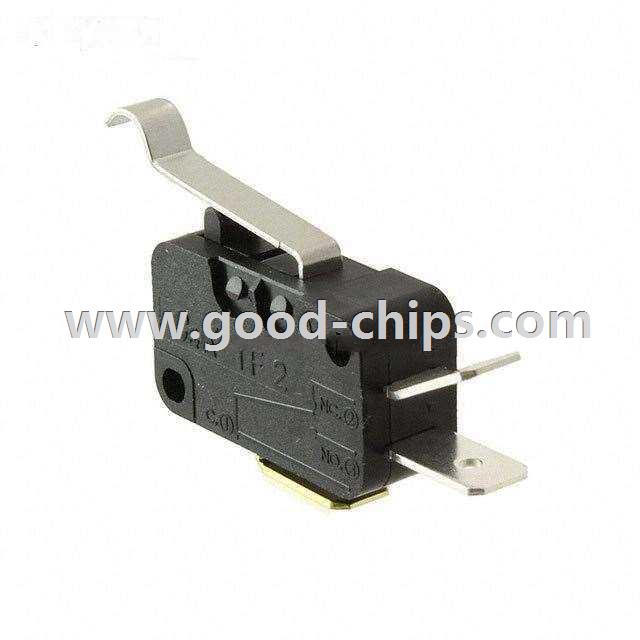

Manufacturer Part Number: | TF2CFF5ST144AC |
---|---|
Manufacturer: | C&K Components |
Product Category: | Snap Action, Limit Switches |
Available Quantity: | 9303 Pieces |
Unit Price: | Quote by Email |
Description: | SWITCH SNAP ACT SPDT 100MA 125V |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | TF2CFF5ST144AC Datasheet |
Internal Part Number | 898-TF2CFF5ST144AC | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Featured Product | TF2 Series Miniature Snap-Acting Switches | |
Online Catalog | TF2 Series | |
Category | Switches | |
Family | Snap Action, Limit Switches | |
Manufacturer | C&K Components | |
Series | TF2 | |
Packaging | Bulk | |
Part Status | Active | |
Circuit | SPDT | |
Switch Function | On-Mom | |
Current Rating | 100mA (AC) | |
Voltage Rating - AC | 125V | |
Voltage Rating - DC | - | |
Actuator Type | Lever, Simulated Roller | |
Mounting Type | Chassis Mount | |
Termination Style | Quick Connect - 0.250" (6.3mm) | |
Ingress Protection | - | |
Features | - | |
Operating Force, Torque | 28gf | |
Release Force | 3gf | |
Pretravel | 0.218" (5.5mm) | |
Differential Travel | 0.045" (1.1mm) | |
Overtravel | 0.055" (1.4mm) | |
Operating Position | 0.738" (18.7mm) | |
Mechanical Life | - | |
Electrical Life | 10,000 Cycles | |
Operating Temperature | -40°C ~ 85°C | |
Standard Package | 300 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | TF2CFF5ST144AC | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
TF2CFF5ST144AC is in stock for immediate shipping now. We are the distributor of C&K Components all series components. The condition of TF2CFF5ST144AC is new and unused, you can buy TF2CFF5ST144AC C&K Components with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for TF2CFF5ST144AC.
