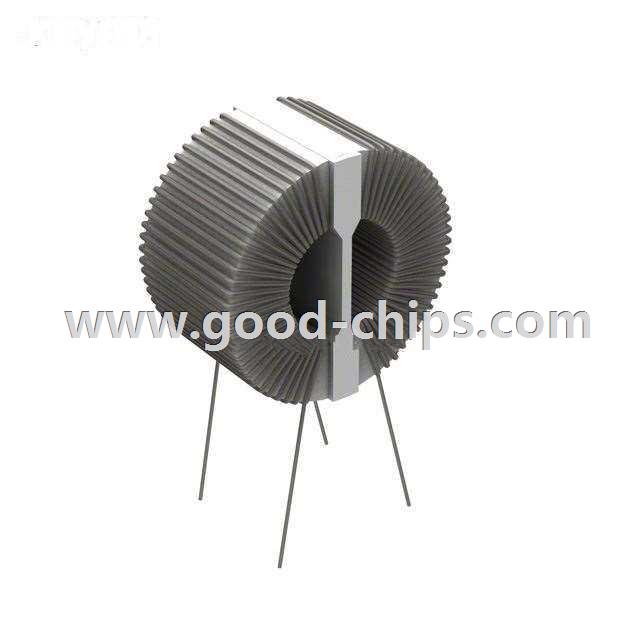

| Manufacturer Part Number: | TF1320S-222Y2R0-01 |
|---|---|
| Manufacturer: | TDK Corporation |
| Product Category: | Common Mode Chokes |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | 2 Line Common Mode Choke Through Hole 2A DCR 100 mOhm |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | TF1320S-222Y2R0-01 Datasheet |
| Internal Part Number | 898-TF1320S-222Y2R0-01 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Category | Filters | |
| Family | Common Mode Chokes | |
| Manufacturer | TDK Corporation | |
| Series | TF | |
| Packaging | Bulk | |
| Part Status | Active | |
| Filter Type | Power Line | |
| Number of Lines | 2 | |
| Impedance @ Frequency | - | |
| Inductance @ Frequency | - | |
| Current Rating (Max) | 2A | |
| DC Resistance (DCR) (Max) | 100 mOhm | |
| Voltage Rating - DC | - | |
| Voltage Rating - AC | - | |
| Operating Temperature | -20°C ~ 120°C | |
| Ratings | - | |
| Approvals | - | |
| Features | - | |
| Mounting Type | Through Hole | |
| Size / Dimension | 0.787" Dia x 0.512" W (20.00mm x 13.00mm) | |
| Height (Max) | 0.787" (20.00mm) | |
| Package / Case | Vertical, No Base, 4 PC Pin | |
| Standard Package | 10 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | TF1320S-222Y2R0-01 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
TF1320S-222Y2R0-01 is in stock for immediate shipping now. We are the distributor of TDK Corporation all series components. The condition of TF1320S-222Y2R0-01 is new and unused, you can buy TF1320S-222Y2R0-01 TDK Corporation with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for TF1320S-222Y2R0-01.
