| Manufacturer Part Number: | TDP08H1SBD1 |
|---|---|
| Manufacturer: | C&K Components |
| Product Category: | DIP Switches |
| Available Quantity: | 10934 Pieces |
| Unit Price: | Quote by Email |

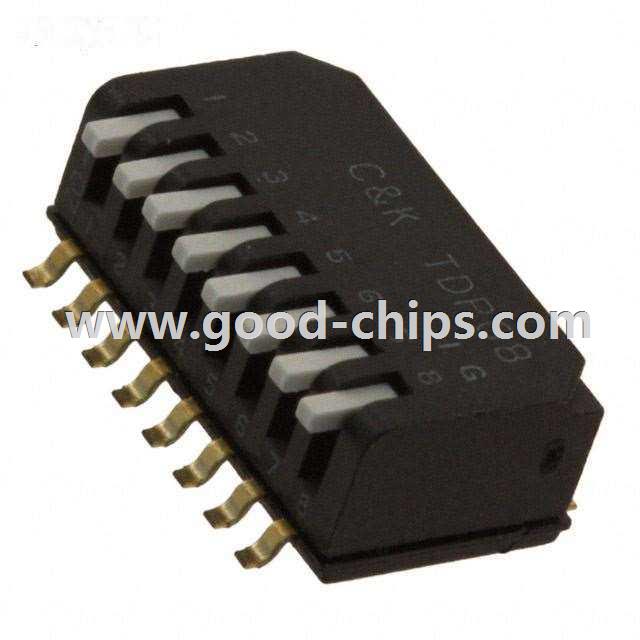

| Description: | Dip Switch SPST 8 Position Surface Mount, Right Angle Piano Actuator 25mA 24VDC |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | TDP08H1SBD1 Datasheet |
| Internal Part Number | 898-TDP08H1SBD1 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Product Training Modules | Introduction to Electromechanical Switches | |
| Featured Product | TDP Series | |
| Online Catalog | TDP Series | |
| Category | Switches | |
| Family | DIP Switches | |
| Manufacturer | C&K Components | |
| Series | TDP | |
| Packaging | Tube | |
| Part Status | Active | |
| Circuit | SPST | |
| Number of Positions | 8 | |
| Current Rating | 25mA | |
| Voltage Rating | 24VDC | |
| Actuator Type | Piano | |
| Actuator Level | Raised | |
| Contact Material | Copper Alloy | |
| Contact Finish | Gold | |
| Height Above Board | 0.161" (4.10mm) | |
| Mounting Type | Surface Mount, Right Angle | |
| Termination Style | Gull Wing | |
| Pitch | 0.050" (1.27mm), Half | |
| Washable | No | |
| Features | - | |
| Body Material | Polyphenylene Sulfide (PPS), Glass Filled | |
| Length | 0.444" (11.28mm) | |
| Operating Temperature | -40°C ~ 85°C | |
| Mechanical Life | 1,000 Cycles | |
| Electrical Life | 1,000 Cycles | |
| Standard Package | 40 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | TDP08H1SBD1 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
TDP08H1SBD1 is in stock for immediate shipping now. We are the distributor of C&K Components all series components. The condition of TDP08H1SBD1 is new and unused, you can buy TDP08H1SBD1 C&K Components with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for TDP08H1SBD1.
