| Manufacturer Part Number: | TDA1566TH/N2S,118 |
|---|---|
| Manufacturer: | NXP Semiconductors |
| Product Category: | Linear - Amplifiers - Audio |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | Amplifier IC 1-Channel (Mono) or 2-Channel (Stereo) Class AB 24-HSOP |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | TDA1566TH/N2S,118 Datasheet |
| Internal Part Number | 898-TDA1566TH/N2S,118 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Category | Integrated Circuits (ICs) | |
| Family | Linear - Amplifiers - Audio | |
| Manufacturer | NXP Semiconductors | |
| Series | - | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| Type | Class AB | |
| Output Type | 1-Channel (Mono) or 2-Channel (Stereo) | |
| Max Output Power x Channels @ Load | 150W x 1 @ 1 Ohm; 75W x 2 @ 2 Ohm | |
| Voltage - Supply | 6.5 V ~ 18 V | |
| Features | Depop, I²C, Mute, Short-Circuit and Thermal Protection, Standby | |
| Mounting Type | Surface Mount | |
| Operating Temperature | -40°C ~ 85°C (TA) | |

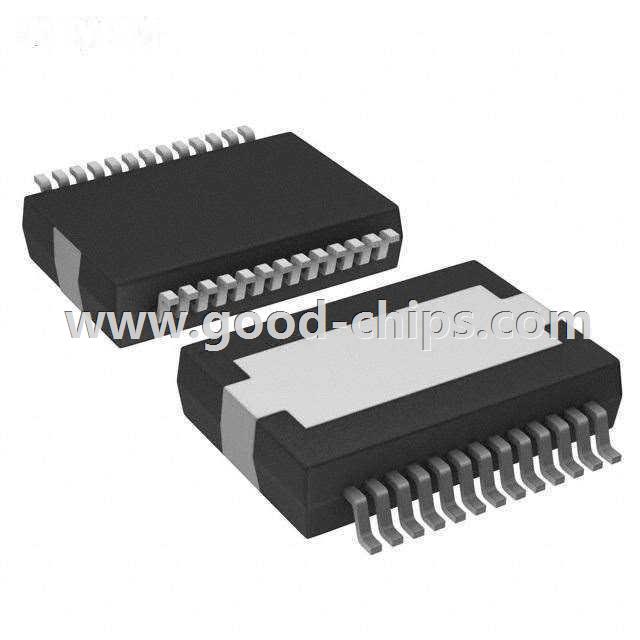

| Supplier Device Package | 24-HSOP | |
| Package / Case | 24-BSOP (0.433", 11.00mm Width) Exposed Pad | |
| Standard Package | 500 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | TDA1566TH/N2S,118 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
TDA1566TH/N2S,118 is in stock for immediate shipping now. We are the distributor of NXP Semiconductors all series components. The condition of TDA1566TH/N2S,118 is new and unused, you can buy TDA1566TH/N2S,118 NXP Semiconductors with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for TDA1566TH/N2S,118.
