Manufacturer Part Number: | TD-26.000MBE-T |
---|---|
Manufacturer: | TXC CORPORATION |
Product Category: | Oscillators |
Available Quantity: | 9010 Pieces |
Unit Price: | Quote by Email |

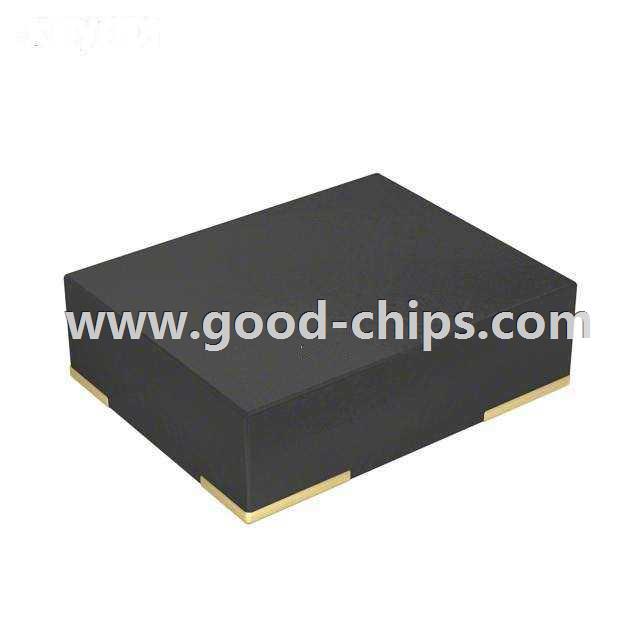

Description: | 26MHz CMOS MEMS (Silicon) Oscillator Surface Mount 3.3V 25mA Enable/Disable |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | TD-26.000MBE-T Datasheet |
Internal Part Number | 898-TD-26.000MBE-T | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Product Training Modules | MEMS Oscillator | |
EDA / CAD Models | Download from Accelerated Designs | |
Category | Crystals and Oscillators | |
Family | Oscillators | |
Manufacturer | TXC CORPORATION | |
Series | TD | |
Packaging | Tape & Reel (TR) | |
Part Status | Active | |
Type | MEMS (Silicon) | |
Frequency | 26MHz | |
Function | Enable/Disable | |
Output | CMOS | |
Voltage - Supply | 3.3V | |
Frequency Stability | ±50ppm | |
Operating Temperature | -40°C ~ 85°C | |
Current - Supply (Max) | 25mA | |
Ratings | - | |
Mounting Type | Surface Mount | |
Size / Dimension | 0.098" L x 0.079" W (2.50mm x 2.00mm) | |
Height | 0.031" (0.80mm) | |
Package / Case | 4-SMD, No Lead (DFN, LCC) | |
Current - Supply (Disable) (Max) | - | |
Standard Package | 3,000 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | TD-26.000MBE-T | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
TD-26.000MBE-T is in stock for immediate shipping now. We are the distributor of TXC CORPORATION all series components. The condition of TD-26.000MBE-T is new and unused, you can buy TD-26.000MBE-T TXC CORPORATION with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for TD-26.000MBE-T.
