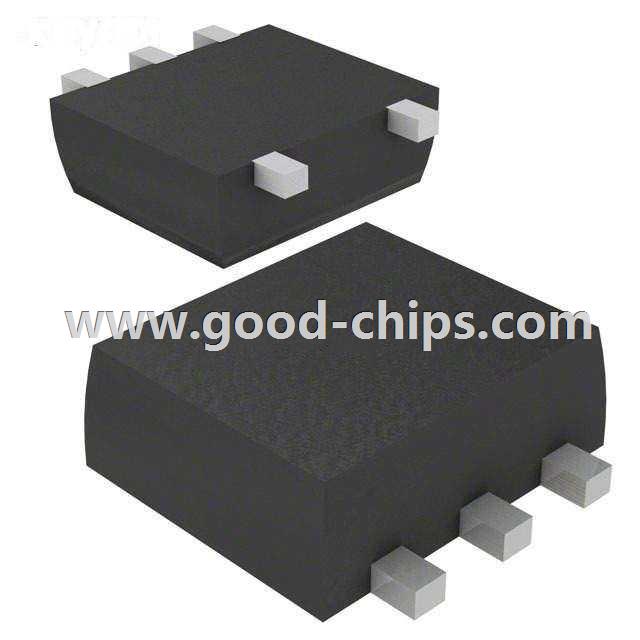

TCS11DLU(TE85L,F)

TCS11DLU(TE85L,F)
Manufacturer Part Number:TCS11DLU(TE85L,F)
Manufacturer:
Product Category:Magnetic Sensors - Switches (Solid State)
Available Quantity:9010 Pieces
Unit Price:Quote by Email
Description:IC HALL EFFECT SENSOR UFV
Lead Free Status / RoHS Status:Lead free / RoHS Compliant
Moisture Sensitivity Level (MSL):1 (Unlimited)
Production Status (Lifecycle):Obsolete / Discontinued
Delivery Time:1-2 Days
Date Code (D/C):New
Datasheet Download: TCS11DLU(TE85L,F) Datasheet
TCS11DLU(TE85L,F)´s Parameters
Internal Part Number898-TCS11DLU(TE85L,F)
Manufacturer Lead time6-8 weeks
ConditionNew & Unused, Original Sealed
CategorySensors, Transducers
FamilyMagnetic Sensors - Switches (Solid State)
ManufacturerToshiba Semiconductor and Storage
SeriesTCS
PackagingTape & Reel (TR)
Part StatusObsolete
FunctionOmnipolar Switch
TechnologyHall Effect
PolarizationEither
Sensing Range±2.5mT Trip, ±0.3mT Release
Test Condition25°C
Voltage - Supply2.3 V ~ 3.6 V
Current - Supply (Max)1.3mA
Current - Output (Max)5mA
Output TypeOpen Drain
Features-
Operating Temperature-40°C ~ 85°C (TA)
Package / Case6-SMD (5 Leads), Flat Lead
Supplier Device PackageUFV
Standard Package 3,000
Weight0.001 KG
ApplicationEmail for details
Replacement PartTCS11DLU(TE85L,F)
Country of OriginUSA / JAPAN / Philippines / Malaysia
MOQ1 Piece
Picture / Image / PhotoSend via email

TCS11DLU(TE85L,F) is in stock for immediate shipping now. We are the distributor of Toshiba Semiconductor and Storage all series components. The condition of TCS11DLU(TE85L,F) is new and unused, you can buy TCS11DLU(TE85L,F) Toshiba Semiconductor and Storage with us at a very low price and quick delivery.

Please kindly send us an email if you have any demands for TCS11DLU(TE85L,F).
