| Manufacturer Part Number: | TCM2010-101-4P-T |
|---|---|
| Manufacturer: | TDK Corporation |
| Product Category: | Common Mode Chokes |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | 4 Line Common Mode Choke Surface Mount 100 Ohm @ 100MHz 100mA DCR 1.5 Ohm |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | Obsolete / Discontinued |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | TCM2010-101-4P-T Datasheet |
| Internal Part Number | 898-TCM2010-101-4P-T | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Category | Filters | |
| Family | Common Mode Chokes | |
| Manufacturer | TDK Corporation | |
| Series | TCM | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Obsolete | |
| Filter Type | Signal Line | |
| Number of Lines | 4 | |
| Impedance @ Frequency | 100 Ohm @ 100MHz | |
| Inductance @ Frequency | - | |
| Current Rating (Max) | 100mA | |
| DC Resistance (DCR) (Max) | 1.5 Ohm | |
| Voltage Rating - DC | 10V | |
| Voltage Rating - AC | - | |
| Operating Temperature | -25°C ~ 85°C | |
| Ratings | - | |
| Approvals | - | |
| Features | - | |
| Mounting Type | Surface Mount | |
| Size / Dimension | 0.079" L x 0.039" W (2.00mm x 1.00mm) | |
| Height (Max) | 0.035" (0.90mm) | |

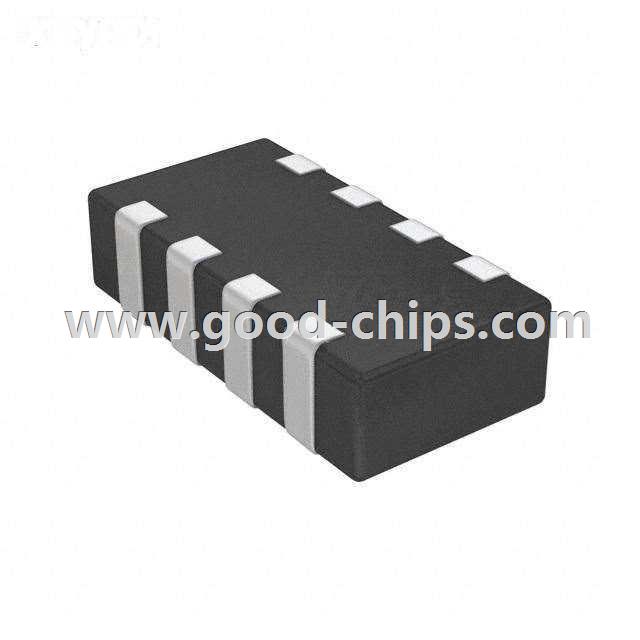

| Package / Case | 0804 (2010 Metric), 8 Lead | |
| Standard Package | 4,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | TCM2010-101-4P-T | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
TCM2010-101-4P-T is in stock for immediate shipping now. We are the distributor of TDK Corporation all series components. The condition of TCM2010-101-4P-T is new and unused, you can buy TCM2010-101-4P-T TDK Corporation with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for TCM2010-101-4P-T.
