| Manufacturer Part Number: | TCLAMP1202P.TGT |
|---|---|
| Manufacturer: | Semtech Corporation |
| Product Category: | TVS - Diodes |
| Available Quantity: | 19010 Pieces |
| Unit Price: | Quote by Email |
| Description: | TVS DIODE 12VWM 25VC |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | TCLAMP1202P.TGT Datasheet |
| Internal Part Number | 898-TCLAMP1202P.TGT | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Online Catalog | TClamp® 1202P Series | |
| Category | Circuit Protection | |
| Family | TVS - Diodes | |
| Manufacturer | Semtech Corporation | |
| Series | TransClamp™ | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| Type | Steering (Rail to Rail) | |
| Unidirectional Channels | - | |
| Bidirectional Channels | 2 | |
| Voltage - Reverse Standoff (Typ) | 12V (Max) | |
| Voltage - Breakdown (Min) | 13.3V | |
| Voltage - Clamping (Max) @ Ipp | 25V | |
| Current - Peak Pulse (10/1000µs) | 12A | |
| Power - Peak Pulse | 300W | |
| Power Line Protection | Yes | |
| Applications | General Purpose | |
| Capacitance @ Frequency | 12pF @ 1MHz | |
| Operating Temperature | -55°C ~ 125°C (TJ) | |
| Mounting Type | Surface Mount | |

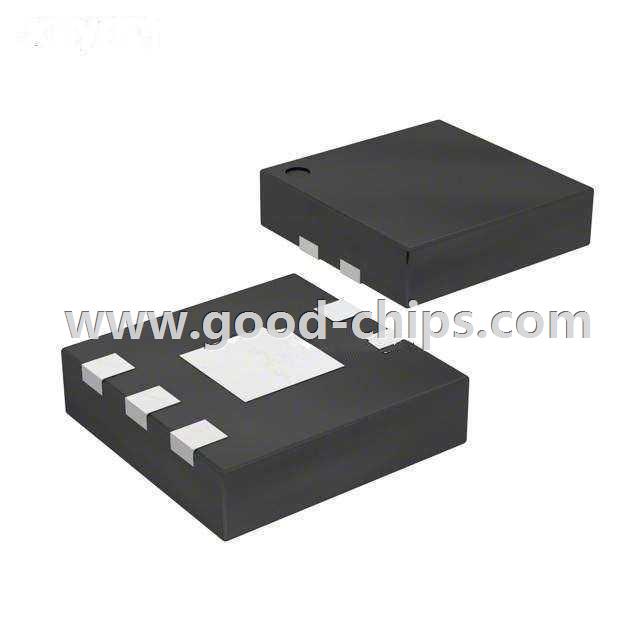

| Package / Case | 5-UDFN, Exposed Pad | |
| Supplier Device Package | SLP2020P5 (2x2) | |
| Standard Package | 10,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | TCLAMP1202P.TGT | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
TCLAMP1202P.TGT is in stock for immediate shipping now. We are the distributor of Semtech Corporation all series components. The condition of TCLAMP1202P.TGT is new and unused, you can buy TCLAMP1202P.TGT Semtech Corporation with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for TCLAMP1202P.TGT.
