Manufacturer Part Number: | TCK102G,LF |
---|---|
Manufacturer: | Toshiba Semiconductor and Storage |
Product Category: | PMIC - Power Distribution Switches, Load Drivers |
Available Quantity: | 9010 Pieces |
Unit Price: | Quote by Email |
Description: | IC POWER DIST LOAD SWITCH 6WCSP |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | TCK102G,LF Datasheet |
Internal Part Number | 898-TCK102G,LF | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Product Training Modules | Load Switch IC Overview | |
Category | Integrated Circuits (ICs) | |
Family | PMIC - Power Distribution Switches, Load Drivers | |
Manufacturer | Toshiba Semiconductor and Storage | |
Series | - | |
Packaging | Tape & Reel (TR) | |
Part Status | Active | |
Switch Type | General Purpose | |
Number of Outputs | 1 | |
Ratio - Input:Output | 1:1 | |
Output Configuration | High Side | |
Output Type | P-Channel | |
Interface | On/Off | |
Voltage - Load | 1.1 V ~ 5.5 V | |
Voltage - Supply (Vcc/Vdd) | Not Required | |
Current - Output (Max) | 1A | |
Rds On (Typ) | 50 mOhm | |
Input Type | Non-Inverting | |
Features | Slew Rate Controlled | |
Fault Protection | Over Temperature | |
Operating Temperature | -40°C ~ 85°C (TA) | |

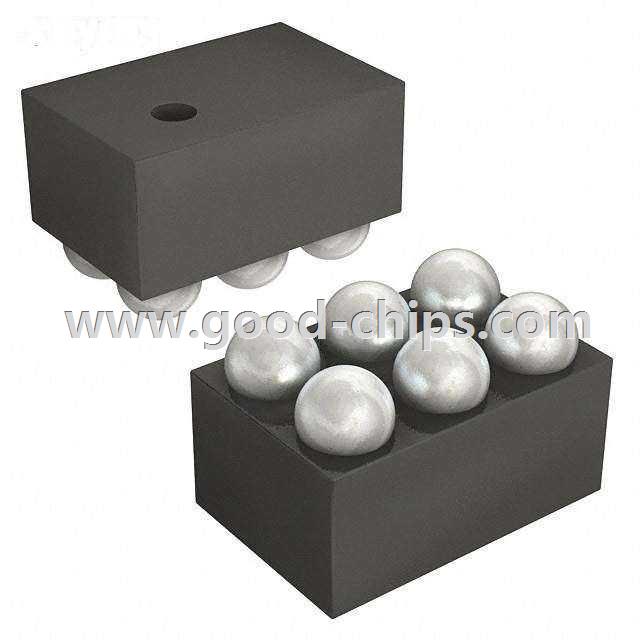

Package / Case | 6-UFBGA | |
Supplier Device Package | 6-BGA | |
Standard Package | 3,000 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | TCK102G,LF | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
TCK102G,LF is in stock for immediate shipping now. We are the distributor of Toshiba Semiconductor and Storage all series components. The condition of TCK102G,LF is new and unused, you can buy TCK102G,LF Toshiba Semiconductor and Storage with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for TCK102G,LF.
