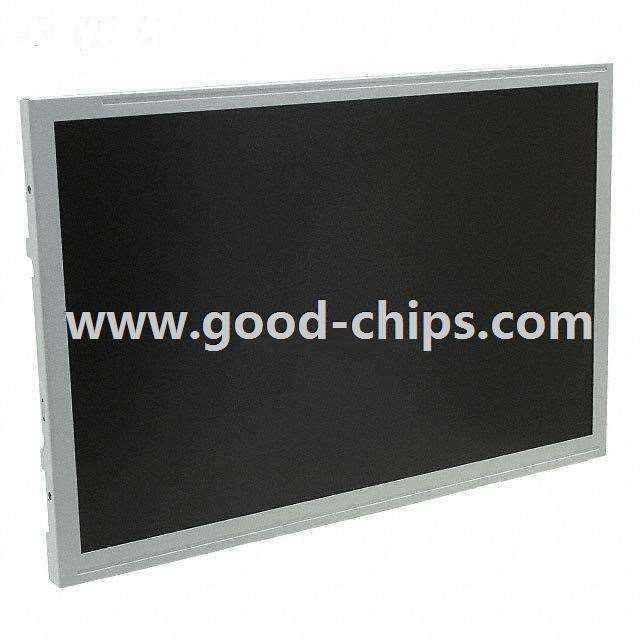

Manufacturer Part Number: | TCG101WXLPAANN-AN20 |
---|---|
Manufacturer: | Kyocera International, Inc. |
Product Category: | Display Modules - LCD, OLED, Graphic |
Available Quantity: | 9022 Pieces |
Unit Price: | Quote by Email |
Description: | Graphic LCD Display Module Transmissive Red, Green, Blue (RGB) TFT - Color LVDS 10.1" (256.54mm) 1280 x 800 (WXGA1) |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | TCG101WXLPAANN-AN20 Datasheet |
Internal Part Number | 898-TCG101WXLPAANN-AN20 | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Featured Product | 10.1" and 12.1" WXGA TFT Displays | |
PCN Design/Specification | Tape change 27/nov/2015 | |
Online Catalog | TFT LCD Displays | |
Category | Optoelectronics | |
Family | Display Modules - LCD, OLED, Graphic | |
Manufacturer | Kyocera International, Inc. | |
Series | - | |
Part Status | Active | |
Display Type | TFT - Color | |
Display Mode | Transmissive | |
Touchscreen | - | |
Diagonal Screen Size | 10.1" (256.54mm) | |
Viewing Area | 216.96mm W x 135.60mm H | |
Backlight | LED - White | |
Dot Pixels | 1280 x 800 (WXGA1) | |
Interface | LVDS | |
Graphics Color | Red, Green, Blue (RGB) | |
Background Color | - | |
Dot Size | - | |
Dot Pitch | 0.06mm W x 0.17mm H | |
Standard Package | 10 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | TCG101WXLPAANN-AN20 | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
TCG101WXLPAANN-AN20 is in stock for immediate shipping now. We are the distributor of Kyocera International, Inc. all series components. The condition of TCG101WXLPAANN-AN20 is new and unused, you can buy TCG101WXLPAANN-AN20 Kyocera International, Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for TCG101WXLPAANN-AN20.
